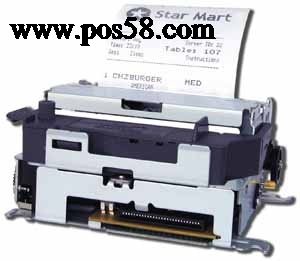

The MP512MDIII is an ideal solution in Electronic Cash Register (ECR), Data Terminals and Testing Equipment. It combines the latest technology in logic seeking printing mechanism with its ultra efficient and compact design to achieve an extremely fast print speed of over 4.4 lines per second. Enhanced design is capable for heavy duty usage, with MCBF 9 millions lines.

 High Quality 9-pin mechanism with Graphics Capability
 Fast speed up to 4.4 lines/second.
 Enhanced Design is capable of heavy duty usage
 High Reliability - MCBF 9 millions lines
 Bi-directional Chinese Character Printing Ready

Star’s close working relationships with OEM customers all over the world have resulted in a range of mechanism which have been produced to provide fast, efficient and reliable solutions in the widest variety of application.





Model		MP512III	MP512FMC	MP512N
Printing Methid	Serial Impact Dot Matrix	9 pin	9 pin	9 pin
Character Specifications	Font	7x9 (half dot), 5x9	7x9 (half dot), 5x9	7x9 (half dot), 5x9
	Column Capacity	42 columns (7x9 half-dot spaces)	42 columns (7x9 half-dot spaces)	42 columns (7x9 no spaces)
	Character size	1.19mm(W) x 2.42mm(H)	1.2mm(W) X 2.42mm(H)	1.2mm(W) X 2.42mm(H)
	Printable area	62.6mm (76.2mm paper)	63mm (76mm paper)	63mm (76mm paper)
	Number of total dot	210 Dots per line	210 Dots per line	210 Dots per line
	Line spacing	Min 0.176mm	Min 0.176	N/A
Print Speed	(ANK 42 Columns of continuous printing)	Max 4.4 lps	Max 4.0 lps	Max 4.0 lps
Paper	Type	Roll paper	Roll paper	Roll paper
	Width	76.2 / 57.5mm	76.2 / 57.5mm	76
	Diameter	Max.Ø85mm	N/A	N/A
	Thickness	0.07 ~ 0.10mm	0.07 ~ 0.10mm	0.07 ~ 0.10mm
	Copy capactiy	1 + 2, max 0.2mm	1 + 2, max 0.2mm	1 + 2, max 0.2mm
Drive Voltage		24V DC ± 10%	24V DC ± 10%	24V DC ± 10%
Reliability	MCBF Print Head Life (at average 11.4 dot/character)	9 Million  150M character	9 Million  100M character	9 Million  100M character
External Dimension (W)x(D)x(H) Weight (excluding the ribbon cassette)		125.5 x 99.2 x 54.7 mm (489g)	128.4 x 111.4 x 56.5mm (600g)	111.4 x 70.7 x 56.5mm (300g)
