产品展示

MP512MDIII-24AR

MP512MDIII-24AR MP512MDIII-24AR MP512MDIII-24AR MP512MDIII-24AR
产品名称:MP512MDIII-24AR
产品编号:MP512MDIII-24AR
详细说明:

MP512MDIII-24AR

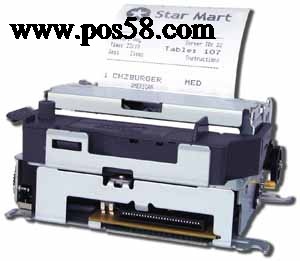

STAR MP512 Dot Matrix Mechanism

 The MP512MDIII is an ideal solution in Electronic Cash Register (ECR), Data Terminals and Testing Equipment. It combines the latest technology in logic seeking printing mechanism with its ultra efficient and compact design to achieve an extremely fast print speed of over 4.4 lines per second. Enhanced design is capable for heavy duty usage, with MCBF 9 millions lines.

 High Quality 9-pin mechanism with Graphics Capability
 Fast speed up to 4.4 lines/second.
 Enhanced Design is capable of heavy duty usage
 High Reliability - MCBF 9 millions lines
 Bi-directional Chinese Character Printing Ready

Star’s close working relationships with OEM customers all over the world have resulted in a range of mechanism which have been produced to provide fast, efficient and reliable solutions in the widest variety of application.





Model MP512III  MP512FMC  MP512N
Printing Methid Serial Impact Dot Matrix   9 pin   9 pin   9 pin
Character Specifications Font   7x9 (half dot), 5x9   7x9 (half dot), 5x9   7x9 (half dot), 5x9
Column Capacity   42 columns (7x9 half-dot spaces)   42 columns (7x9 half-dot spaces)   42 columns (7x9 no spaces)
Character size   1.19mm(W) x 2.42mm(H)   1.2mm(W) X 2.42mm(H)   1.2mm(W) X 2.42mm(H)
Printable area   62.6mm (76.2mm paper)   63mm (76mm paper)   63mm (76mm paper)
Number of total dot   210 Dots per line   210 Dots per line   210 Dots per line
Line spacing   Min 0.176mm   Min 0.176  N/A
Print Speed (ANK 42 Columns of continuous printing)   Max 4.4 lps   Max 4.0 lps   Max 4.0 lps
Paper Type   Roll paper   Roll paper   Roll paper
Width   76.2 / 57.5mm   76.2 / 57.5mm   76
Diameter Max.Ø85mm   N/A   N/A
Thickness   0.07 ~ 0.10mm   0.07 ~ 0.10mm   0.07 ~ 0.10mm
Copy capactiy   1 + 2, max 0.2mm   1 + 2, max 0.2mm   1 + 2, max 0.2mm
Drive Voltage   24V DC ± 10%   24V DC ± 10%   24V DC ± 10%
Reliability MCBF
Print Head Life (at average 11.4 dot/character)
  9 Million
 150M character
  9 Million
 100M character
  9 Million
 100M character
External Dimension (W)x(D)x(H) Weight (excluding the ribbon cassette)   125.5 x 99.2 x 54.7 mm (489g)   128.4 x 111.4 x 56.5mm (600g)   111.4 x 70.7 x 56.5mm (300g)
