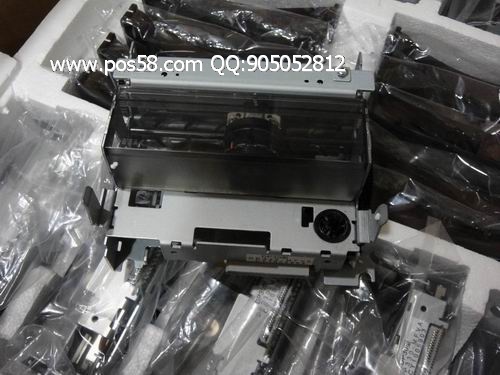

DOT IMPACT PRINTER MECHANISMS DP-331 DP-332 |
|
| 产品名称：DOT IMPACT PRINTER MECHANISMS DP-331 DP-332 |
| 产品编号：DOT IMPACT PRINTER MECHANISMS DP-331 DP-332 |
| 详细说明： |
DOT IMPACT PRINTER MECHANISMS
DP-331/332
| Classification category |
Paper width |
Printing speed |
Model |
| Printing color |
Single |
58mm |
2.5/1.8 lines/sec. |
MD-910/911 |
| 76mm/76-89mm |
3.6 lines/sec. |
DP-624 |
| 38 + 38mm |
3.0 lines/sec. |
DP-630 |
| 45 + 45mm |
3.0 lines/sec. |
DP-730 |
| 2 colors |
76mm |
76mm |
DP-330 |
| 58/76/80mm |
58/76/80mm |
DP-331/332 |
| 76mm/76-89mm |
76mm/76-89mm |
DP-614/617 |
| 76mm/76-89mm |
3.6/3.0 lines/sec. |
DP-654/657 |
| Paper feed |
Friction |
76mm |
76mm |
DP-330 |
| 58/76/80mm |
58/76/80mm |
DP-331/332 |
| 58mm |
2.5/1.8 lines/sec. |
MD-910/911 |
Friction
or
Sprocket |
76mm/76-89mm |
76mm/76-89mm. |
DP-614/617 |
| 76mm/76-89mm |
3.6 lines/sec. |
DP-624 |
| 76mm/76-89mm |
3.6/3.0 lines/sec. |
DP-654/657 |
| Two station |
Friction |
38 + 38mm |
3.0 lines/sec. |
DP-630 |
| 45 + 45mm |
3.0 lines/sec. |
DP-730 |
DP-331/332
Paper roll
58mm
Paper roll
76mm
Paper roll
80mm
5.0 lines/sec Printing Speed
Features
- Drop-in paper loading
- 3 ply paper (1 original + 2 copies) compatible
- High speed print: Max. 5.0 lines/sec
- 76.2/69.5/57.5mm paper width
- 24V operation
- 2 color printing
Specifications
| |
DP-331 |
DP-332 |
| Printing method |
Serial impact dot matrix method |
| Printing direction |
Bi-directional |
| Printing speed |
Approx. 5.0 lines/sec |
| Total number of dots (dots/lines) *1 |
180 (360) |
| Number of columns |
42 columns |
| Font (W × H) |
7 × 9 matrix |
| Character size(W × H)mm *1 |
1.36 × 2.4 (3.1) |
| Line spacing |
0.176mm (1/144 inch) |
| Number of wires |
9 pins |
| Motor |
Voltage: 24 ± 2.4VDC
Current Peak approx. 1A / Average 0.2A or less |
| Sensor |
Home position |
Photo interrupter |
| Paper end |
Photo interrupter |
| Paper near end |
Photo interrupter |
- |
| Printing solenoid |
Voltage: 24 ± 5%VDC |
| Printing feed solenoid |
Voltage: 24 ± 5%VDC |
| Paper feed |
Friction |
| Paper feeding speed (lines/sec) |
Approx. 18 |
| Printing paper |
Width |
Width: 76.2/69.5/57.5± 0.5mm |
| Roll diameter |
φ30 to φ83mm |
| Thickness |
1P: 60 to 85µm
Copy paper: 50 to 200µm (Total thickness) |
| Copy *2 |
1P roll paper
2P copy roll paper (1 original + 1 copy)
3P (1 original + 2 copies) |
| Ink ribbon cartridge |
Two color (Red and Black), Single color (Black) |
| External dimensions |
136 (W) × 144.4 (D) × 95.85 (H)mm |
150 (W) × 240.7 (D) × 119.9 (H)mm |
| Weight |
Approx. 950g |
Approx. 1,550g |
| Environment |
Operation |
0 to 50°C |
| Storage |
-20 to 70°C |
| Reliability |
Mechanism |
MCBF 7.5 million lines |
| Printer head |
150 million characters |
(*1): Figures in () are available by including half-dot.
(*2): Total paper thickness is 0.2mm or less.
Type Classification
|
DP-33
1
(1)
D
(2)
FNNN
|
| (1) Type |
1: DP-331
2: DP-332 |
| (2) Ribbon |
D: 2 color
M: 1 color |
Accessories
Optional accessories
Ink ribbon cartridge
Black
IR-31B (NJ37703)
Red and Black
IR-31RB (NJ37702)
|
 |
