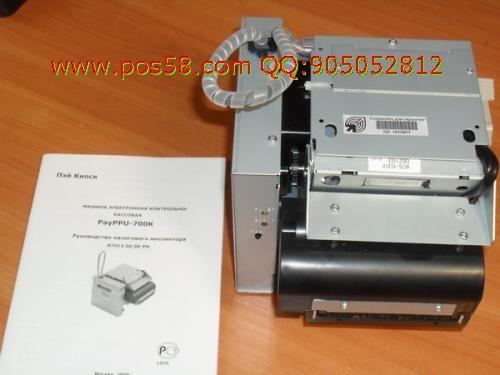

PPU-700II/PHU-331/PHU332

Features

• Selectable paper width of 58, 67, 80 and 82.5mm
• 150mm/sec print speed
• Retractor and presenter
• Installable interface boards
• USB interface standard on all units
  (USB + serial or parallel, USB only or optional Eternet)
• Paper auto loading
• Page mode
• Black mark sensor option
• Presenter unit incorporated
• Large paper roll holder available (option)
• Two color thermal printing
• Barcode and 2D Barcode printing

Retractor and presenter

Easy paper loading

USB interface standard

Installation ideas

Papge Top

Specifications

Printing method	Line thermal dot printing method
Printing width	80mm/640 dots
Dot density	8 × 8 dots/mm (203 dpi)
Printing speed	150mm/sec. (fastest, print density level 2), 1200 dot-lines/sec.
Number of print columns character size dot configuration	Font Number of print columns Character size Dot configuration Font A 48 columns 1.50 × 3.00mm 12 × 24 dots Font B 64 columns 1.13 × 2.13mm 9 × 17 dots Font C 72 columns 1.00 × 2.00mm 8 × 16 dots
Character type	Alphanumeric, International, PC850/852/857/858/860/863/865/866 WPC1252, Katakana
User memory	256 KB (capable of storing user-defined characters and logos)
Barcode types	UPC-A/E, JAN (EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR CODE 93, QR Code, PDF417
Line spacing	4.23mm (1/6 inch) (changeable using commands)
Paper roll	Width: 58m to 82.5mm External diameter: maximum Φ203mm (When using PHU-331/332) Core: Internal diameter: Φ25.4 mm, Outer diameter Φ30 mm or more Paper thickness: 65 to 150µm
Presenter	Standard length: 90mm
Interface	Serial (RS-232C compliant), Parallel (IEEE 1284 compliant) or USB
Buffer size	4K bytes / 72 bytes
Supply voltage	DC24V±7%
Power consumption	Approx. 100W
AC adapter (*1)	Rate input: AC 100 to 240V, 50/60 Hz, 150 VA Rate output: DC 24V, 2A
Weight (approx.)	PPU-700II: 2.1 kg PHU-331/332: 0.95 kg (Paper roll excluded)
Outside dimensions	PPU-700II: 163.2 (W) × 176 (D) × 144 (H)mm
	PHU-331/332: 113.2 to 137.7 (W) × 122.6 (D) × 137.2 (H)mm
Operating temperature and humidity	-10 to 50°C, 35 to 85% RH (No condensation)
Storage temperature and humidity	-20 to 60°C, 10 to 90% RH (No condensation)
Reliability	Printer head life: 150 km, 100 million pulses (*2) Auto cutter life: 1 million cuts (*3)
Safety standard (*4)	UL, C-UL, FCC Class A, TÜV, GS, CE marking

*1: Citizen Systems AC adapter (36AD2) is used.
*2: At normal temperature/humidity, using recommended papaer and paper thickness.
*3: At normal temperature/humidity, using recommended papaer and paper thickness of 65µm.
*4: Compliant if the Citizen Systems AC adapter (36AD2) is used.

Papge Top

Type Classification

PPU-700II (1) RS (2) U (3) M1 (4)
(1) Model type	PPU-700II
(2) Interface	RS: Serial( RS-232) + USB PA: Parallel (IEEE1284) + USB UB: USB only
(3) Market	U: International
(4) Black mark sensor position (Option)	None: No sensor (Standard type) M1: Rear left M2: Rear right (Head up lever side) M3: Left side of printer surface

PHU-3 (1) 3 (2) 1 (3) S (4)
(1) Model type	PHU-331/332
(2) Paper shaft length	3: Paper width 58 to 82.5mm (Standard) 2:Paper width 58md
(3) Number of PNE sensor	1: 1 sensor (Standard) 2: 2 sensors
(4) Paper insert direction	S: Side (Standard) T: Ttop

Papge Top

Accessories

Optional accessories

Paper holder unit

Interface cards

AC adapter

Papge Top

Download

You can download a complete drivers CD and downloadable customization utility to customize print speed, darkness, and default font.

Driver

Customization
