Products

UTP-58E

UTP-58E
Product name:UTP-58E
Item:UTP-58E
Details:

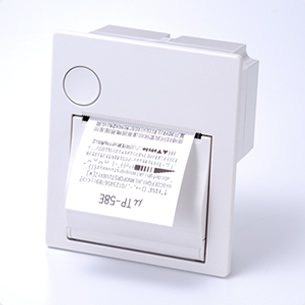

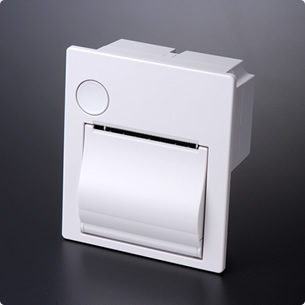

μTP-58E/EB

Features

  • Compact design (61mm depth, 230g weight)

  • 2 alternate power sources

  • Printer driver(Windows 2000, XP, Vista, 7)

  • Easy paper loading

  • Barcode printing

  • RoHS conformity



*Windows is the registered trade mark of Microsoft Corporation in the United States and other countries.
*Specifications is subject to be changed for improvement without notice.
Request Quote

Specifications

Model

μTP-58E (with front panel type)

μTP-58EB (w/o front panel type)

Printing method

Direct line thermal

Number of dots

Mode 1 : 278dots    Mode2 : 334dots     Mode3 : 384dots

Resolution

8dots/mm

Printing width

58mm

Paper width

Mode 1 : 34.75mm

Mode2 : 41.75mm

Mode3 : 48mm

Printing speed

Max. 50mm/sec. *at 8.7V

Characters/line

Mode 1:20characters/line    Mode2:24characters/line
Mode3:32characters/line

Service life

Pulse activation 100 million pulse or more. (Dot’s ratio=12.5%)
Abrasion resistance 50Km or more

Interface

Parallel (Centronics) , Serial (RS-232C)

Input buffer

4096 byte

Character

Mode 1:Katakana , international , special characters
Mode 2:Katakana , international , special characters
Mode 3:Katakana , international , PC437 ,
Kanji(JIS-1、2) , downloaded font , external character

Barcode

JAN (EAN)13/8 , CODE39 , ITF , CODABAR , CODE128 , UPC-E

Power supply

For interface connector pin:
5V to 9VDC, 3A (Peak current: 4A)

For AC adapter
Input: 100VAC to 240VAC, 50/60Hz
Output: 9.0VDC, 3.0A

Current consumption

Standing by 100mA printing in average 1.7A(Max.3A)

Environmental condition

Operating temperature : 0℃ – +50℃
Operating humidity : 30%RH – 80%RH (Non condensation)
Storage temperature : -20℃ – +60℃
Storage humidity : 20%RH – 85%RH (Non condensation)

Dimensions

uTP-58E: 101(W)x116(H)x61(D)mm

uTP-58EB: 95(W)x110(H)x61(D)mm

Weight

230g

Features:

2 alternate power sources.

Compact design (61mm depth, 230g weight)

Accessories

  • Sample paper

  • Main body fitting, Fitting mounting screw

  • Fitting spacer

Option

  • Thermal paper P-58-30

  • AC adapter BLS-120W

  • Flat cable PCE-1

  • Flat cable PCE-2

  • Flat cable PCE-3

  • Flat cable PCE-4
