Medical and precision measuring instruments printer program LTPV445C-832-E LTPV345C-576-E control board |
|
|
| Product name：Medical and precision measuring instruments printer program LTPV445C-832-E LTPV345C-576-E control board |
| Item：精密医疗和测量仪器打印机方案LTPV445C-832-E LTPV345C-576-E |
| Details： |

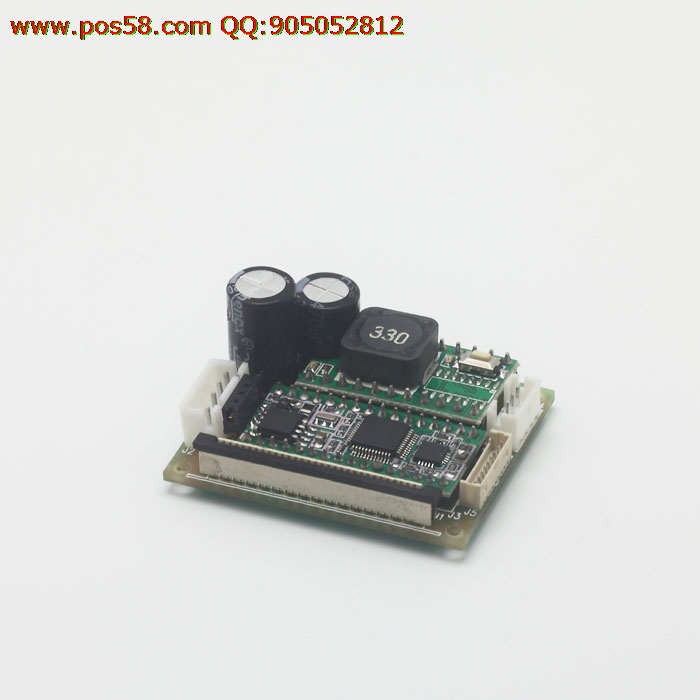

Medical and precision measuring instruments printer program LTPV445C-832-E LTPV345C-576-E control board
|
|
LTPV345 |
LTPV445 |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
576
|
832
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
80  |
112 |
| Printing width(mm) |
72
|
104
|
| Speed(mm/sec) max |
85
|
| Paper path |
Straight
|
| Detection |
Head temperature |
By thermistor
|
| Platen position detection |
By mechanical switch
|
| Out of Paper detection |
By photo interrupter
|
| Power Supply(V) |
Operation voltage(Vdd) |
4.5 to 5.5
|
| Operation voltage(Vp) |
4.2 to 8.5
|
| Peak current(A) |
Head |
3.33 (8V / 64 dots)
|
| Motor |
1.0
|
| Service Life |
Pulse activation(pulse) |
100 million
|
| Abrasion resistance(km) |
50*1
|
| Operating temperature(°C) |
0 to 50
|
| Dimensions(WxHxD mm) |
93.0 x 34.5 x 39.5*2
|
125.0 x 34.5 x 39.5*2
|
| Mass(g) |
Approx.95
|
Approx.115
|
|
*1 Use recommended thermal papers *2 Excluding protrusion
|
|
Interface
|
|
Model
|
IFV101-01B
|
IFV101-01BK |
| CPU |
PTV10P01
|
| Operating Voltage(V) |
Vp:4.2 to 8.5, Vcc:4.5 to 5.5
|
| Character matrix(HxW dots) |
16 dots characters : 16 x 8, 16 x 16 24 dots characters : 24 x 12, 24 x 24
|
| Character type |
Optional font |
Yes
|
Yes
|
| Downloaded character |
Yes
|
Yes
|
| User-defined character |
Yes
|
Yes
|
| Extend graphics character set |
Yes
|
Yes
|
| Katakana character set |
No
|
Yes
|
| JIS 1&2 level kanji |
No
|
Yes
|
| Communication interface |
Parallel, Serial (TTL)
|
| Dimensions(WxHxD mm) |
70.0 x 60.0 x 10.6
|
|
CPU
|
|
|
PTV10P01 |
| Package form |
128pin QFP
|
| Operating Voltage(V) |
Vp:4.2 to 8.5, Vcc:4.5 to 5.5
|
| Operating frequency(MHz) |
18.43+/-0.5%
|
| Configuration |
C-MOS LSI
|
| Communication interface |
Parallel, Serial
|
| Character type |
Extended graphics character set
Other characters are available with CGs*3 or external ROM |
| Character matrix(HxW dots) |
16 dots characters: 16*8, 16*16
|
|
24 dots characters: 24*12, 24*24
|
| Dimensions(WxHxD mm) |
22.0 x 16.0 x 3.1
|
|
*3 CG ROM: Japanese, Korean
|
|
 |
