76 mm self-service terminal receipt printer program
76 mm self-service terminal receipt printer program
Basic features:
76mm wide dot matrix printer auto cutter unit for epson M-U110, star MP512, Citizen DP330 , etc.
Main features:
Printer speed: 4.4 lines / sec (24V voltage input )
Printer life : 9,000,000 lines of characters
Cutter life: 2,000,000 times ( full cut / partial cut optional )
Paper feed: 90 ° Curved Feed
:58-76mm wide paper rolls ordinary pass
Interface: serial, parallel , USB port ( optional )
With automatic document feeder , up reel ( optional )
Feature Comparison :
An exceptional high reliability : Epson standard of 900 million lines MCBF
2 -way and logic search control to ensure 4.4 lines / sec high-speed print output
3 uses the latest ARM chip , improve operational performance and optimize CUP power management section , so that the printer was significantly improved overall life
4 black mark detection function: comes standard with a variable resistor black mark detector , to achieve the best black mark detection capability
5 Interface diversification: serial, parallel , USB options and provides comprehensive software instructions and concise drivers (winxp \ win7)
6 Support for multiple languages
Application:
Bank self-service equipment , communications self-service equipment , postal electrical equipment, self- tanker , water electricity, gas bill payment .

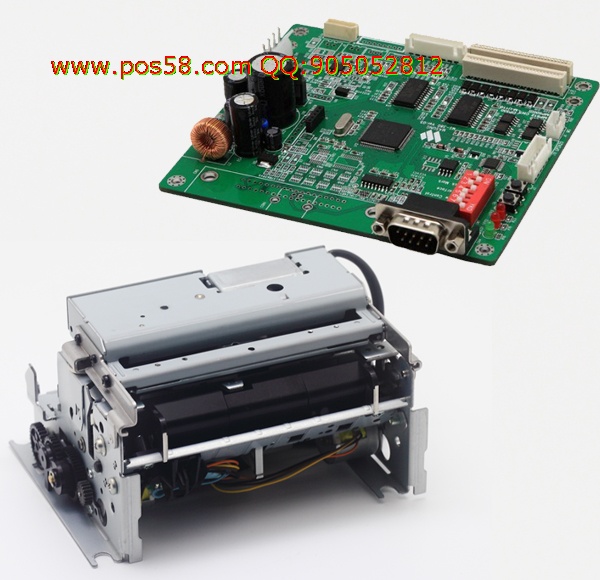

DP380 motherboard Icon
M-U110 series printers suitable for ECR and CAT applications for high-performance printers
1 Quick Print : Bidirectional logic search control to achieve 30 5.6 lines per second printing ( 58 mm ) or 42 print 4.4 lines / sec ( 76 mm ) high-speed print output
(2) Reliability: Excellent reliability , Epson standard of 900 million lines MCBF
3 Install a black mark detector : M-U110 comes standard with a variable resistor black mark detector , to achieve the best black mark detection
4 can use a variety of paper roll :
M-U110 Series supports a variety of sizes of rolls ;
M-U110II able to handle two roll width : 58 mm and 76 mm ;
M-U112 can print 58 mm paper width , and the appearance of the smaller ;
M-U111S Hu ideally suited for use perforated paper rolls for printers ;
5 print multiple copies : M-U110II able to print a copy of the original and a clear copy
Performance Specifications :
