LTPG247A

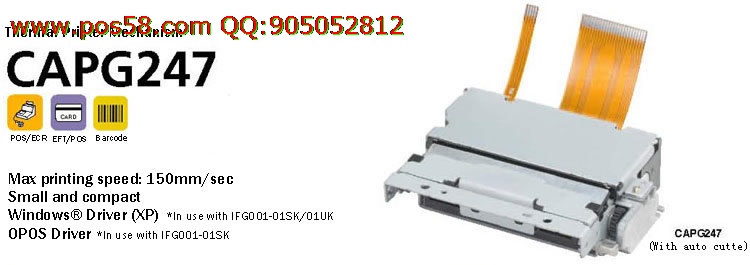

LTPG247A LTPG247A LTPG247A LTPG247A
Product name:LTPG247A
Item:LTPG247A
Details:

Model
CAPG247
Printing Method
Thermal line dot printing
Number of dots/line
432
Resolution(dots/mm)
8
Paper width(mm)
58
Printing width(mm)
54
Speed(mm/sec) max
150

Paper path
Curved
Detection Head temperature
By thermistor
Platen position detection
By mechanical switch
Out of paper detection
By photo interrupter
Cutter home position
By mechanical switch
Power supply(V) Operation voltage(Vdd)
3.14 to 3.46/4.75 to 5.25
Operation voltage(Vp)
21.6 to 26.4
Peak current(A) Head
5.2V (26.4V/288 dots)
Motor
0.4/0.37 *1
Cutter
0.5
Cutting Method
Slide type
Paper thickness (µm)
54 to 80 *2
Cutting type
Full cut/ Partial cut (Leave center point)
Operating time (sec/cycle) max
0.5
Cutting pitch(mm)/min
10
Cut frequency (cut/min) max
30
Service life Pulse activation(pulse)
100 million
Abrasion resistance(km)
100*2
Life (cut)
1,000,000
Operating temperature(°C)
0 to 50
Dimensions(WxHxD mm)
80.5 x 65.0 x 22.2 *3
Mass(g)
Approx.180

*1 2-2 phase and W1-2 excitation method *2 Use recommended thermal papers *3 Excluding protrusion
Windows ® is the registered trademark of Microsoft Corporation (USA).

Interface
Model
IFG001-01SK
IFG001-01UK
CPU
PTG00P01
Thermal printer
CAPG247
Operating Voltage(V)
Vp:21.6 to 26.4
Character matrix(HxW dots)
16 dots characters : 16 x 8, 16 x 16
24 dots characters : 24 x 12, 24 x 24
Character type Optional font
Yes
Yes
Downloaded character
Yes
Yes
User-defined character
Yes
Yes
Extend graphics character set
Yes
Yes
Katakana character set
Yes
Yes
JIS 1&2 level kanji
Yes
Yes
Communication interface
Serial (RS-232C)
USB
Dimensions(WxHxD mm)
75.0 x 75.0 x 16.0



CPU
Model
PTG00P01
Thermal printer
CAPG247
Package form

128pin QFP
Operating voltage(V)
Vp21.6 to 26.4, Vcc:3.0 to 3.6
Operating frequency(MHz)

18.43+/-0.5%
Configuration
C-MOS LSI
Communication interface
Parallel, Serial , USB
Character type Extended graphics character set , Other characters are available with CGs*4 or external ROM
Character matrix (H x W dots)
16 dots characters: 16*8, 16*16
24 dots characters: 24*12, 24*24
Dimensions(WxHxD mm)

22.0 x 16.0 x 3.15

*4 CG ROM:Japanese, Korean
