LTP9347A-S640-E |
|
|
| Product name：LTP9347A-S640-E |
| Item：LTP9347A-S640-E |
| Details： |
|
|

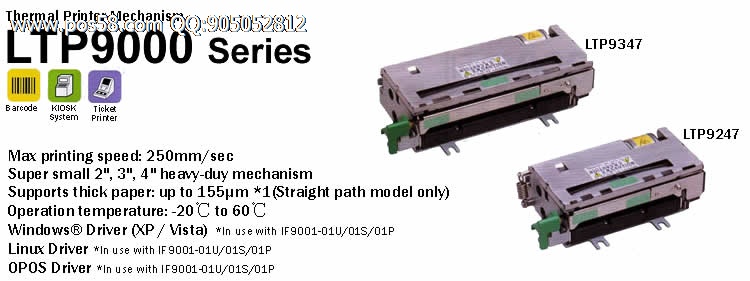

LTP9247 |
LTP9347 |
LTP9447
|
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
448
|
640
|
|
| Resolution(dots/mm) |
|
| Paper width(mm) |
58  / 60 |
80 / 82.55 |
112
|
| Printing width(mm) |
54 / 56
|
76 / 80
|
|
| Speed(mm/sec) max |
250
|
| Paper path |
Curved/Straight
|
| Detection |
Head temperature |
By thermistor
|
| Out of Paper detection |
By photo interrupter
|
| Mark position detection |
By photo interrupter
|
| Cutter position detection |
By mechanical switch
|
| Power supply(V) |
Operation Voltage(Vdd) |
4.75 to 5.25
|
| Operation Voltage(Vp) |
21.6 to 26.4
|
| Peak current(A) |
Head |
5.9 (26.4V / 128 dots)
|
| Motor |
1.0
|
| Service life |
Pulse activation (pulse) |
150 million
|
| Abrasion resistance(km) |
150 *1
|
| Operating temperature(°C) |
-20 to 60
|
| Dimensions(WxHxD mm) |
88.8 X 50.0 X 29.7 *2
|
111.25 X 50.0 X 29.7*2
|
|
| Mass(g) |
Approx.150
|
Approx.180
|
Approx.240 |
|
*1 Use recommended thermal papers *2 Excluding protrusion
Windows ® is the registered trademark of Microsoft Corporation (USA).
|
|
|
|
|

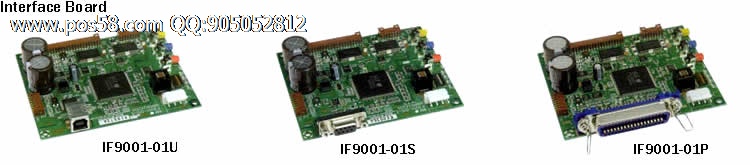

Interface
|
|
Model
|
IF9001-01U
|
IF9001-01S |
IF9001-01P |
| CPU |
IF9001 only
|
| Thermal printer |
LTP9247, LTP9347, LTP9447
|
| Operating Voltage(V) |
Vp: 21.6 to 26.4
|
| Character matrix(HxW dots) |
16 dots characters : 16 x 8, 16 x 16
|
|
24 dots characters : 24 x 12, 24 x 24
|
| Character type |
Optional font |
Yes
|
Yes
|
Yes
|
| Downloaded character |
Yes
|
Yes
|
Yes
|
| User-defined character |
Yes
|
Yes
|
Yes
|
| Extend graphics character set |
Yes
|
Yes
|
Yes
|
| Katakana character set |
|
|
Yes
|
| JIS 1&2 level kanji |
|
|
Yes
|
| Communication interface |
USB
|
Serial (RS-232C) |
Parallel
|
| Dimensions(WxHxD mm) |
108.0 x 90.0 x 28.0
|
|
| |
|
|
|
|
|
 |
