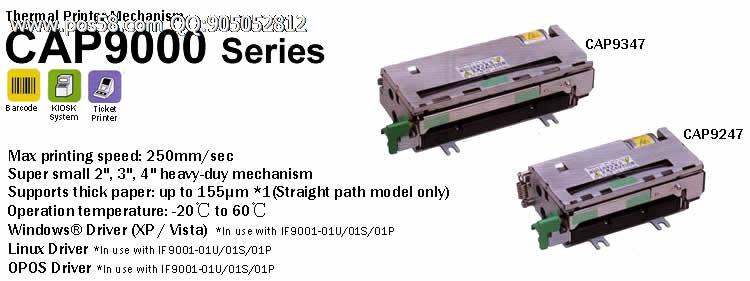

CAP9347J-S640-E

CAP9347J-S640-E
Product name:CAP9347J-S640-E
Item:CAP9347J-S640-E
Details:


Model
CAP9247
CAP9347
CAP9447
Printing Method
Thermal line dot printing
Number of dots/line
448
640
832
Resolution(dots/mm)
8
Paper width(mm)
58/60
80/82.55
112
Printing width(mm)
54/56
76/80
104
Speed(mm/sec) max
250
Paper path
Curved/Straight
Detection Head temperature
By thermistor
Out of Paper detection
By photo interrupter
Mark position detection
By photo interrupter
Platen position detection
By mechanical switch
Cutter position detection
By mechanical switch
Power supply(V) Operation Voltage(Vdd)
4.75 to 5.25
Operation Voltage(Vp)
21.6 to 26.4
Peak current(A) Head
5.9 (26.4V/128 dots)
Motor
1.0
Cutting Method
Slide type
Paper thickness (µm)
57 to 155 *1
Cutting type
Full cut / Partial cut(Leave center point)
Operating time (sec/cycle) max
2
Cutting pitch (mm)min
10
Cut frequency (cut/min) max
30
Service life Pulse activation
150 million
Abrasion resistance(km)
150 *1
Autocutter (cut)
1 million
Operating temperature(°C)
-20 to 60
Dimensions(WxHxD mm)
89.5 x 50.0 x 30.0 *2
112.0 x 50.0 x 30.0*2
140.75 x 59.3 x 32.0*2
Mass(g)
Approx.240
Approx.290
Approx.390
*1 Use recommended thermal papers *2 Excluding protrusion
Windows ® is the registered trademark of Microsoft Corporation (USA).

Interface
Model
IF9001-01U
IF9001-01S IF9001-01P
CPU
IF9001 only
Thermal printer
CAP9247, CAP9347 , CAP9447
Operating Voltage(V)
Vp: 21.6 to 26.4
Character matrix(HxW dots)
16 dots characters : 16 x 8, 16 x 16
24 dots characters : 24 x 12, 24 x 24
Character type Optional font
Yes
Yes
Yes
Downloaded character
Yes
Yes
Yes
User-defined character
Yes
Yes
Yes
Extend graphics character set
Yes
Yes
Yes
Katakana character set
Yes
Yes
Yes
JIS 1&2 level kanji
Yes
Yes
Yes
Communication interface
USB
Serial(RS-232C)
Parallel
Dimensions(WxHxD mm)
108.0 x 90.0 x 28.0
