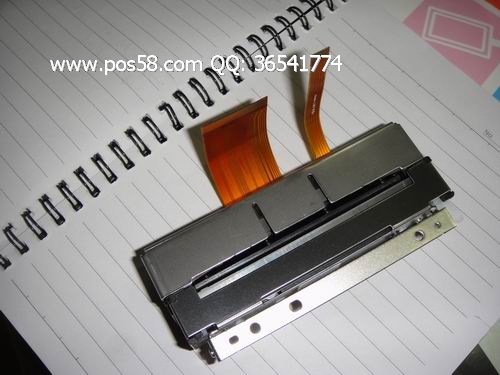

YJX-D347AEF

产品名称：YJX-D347AEF

产品编号：YJX-D347AEF

详细说明：

YJX-D347AEF

CAPD247/347

Easy Paper Operation Mechanism 24V

Thermal Printer Mechanism

CAPD247/347

Build in auto paper cutter
Jam-free cutter design
Max. printing speed : 200mm/sec
Platen latch function
Various drivers

Model		CAPD247	CAPD347
1 Use recommended thermal papers 2 Excluding mounting part *3 Please see "Associated software tool" for details. Windows® is the registered trademark of Microsoft Corporation(USA).
Printing	Method	Thermal line dot printing
	Number of dots/line	432	576
	Resolution(dots/mm)	8
	Paper width(mm)	58	80
	Printing width(mm)	54	72
	Speed(mm/sec)max	200
	Paper path	Curved
Detection	Head temperature	By thermistor
	Platen position	By mechanical switch
	Out of paper	By photo interrupter
	Cutter home position	By photo interrupter
Power supply(V)	Operation voltage(Vdd)	2.7 to 3.6 / 4.75 to 5.25
Power supply(V)	Operation voltage(Vp)	21.6 to 26.4
Peak current(A)	Head	2.61(26.4V/144dots) 5.23(26.4V/288dots)
	Motor	0.44	0.52
	Cutter	0.64
Auto cutter	Method	Slide type
	Paper thickness (µm)	54 to 91^*1
	Cutting type	Full cut / Partial cut (Leave center point)
	Operating time(sec/cycle)max	Approx. 0.5
	Cutting pitch(mm)min	10
	Cut frequency(cut/min)max	30
Service life	Pulse activation(pulse)	100 million
	Abrasion resistance(km)	100^*1
	Paper cutting(cut)	1,000,000^*1
Operating temperature (°C)		-10 to 50
Dimensions(W x D x H mm)		83.1 x 35.4 x 26.9 ^*2	105.1 × 35.4 × 27.2^*2
Mass(g)		Approx.131	Approx.154
Software^*3		Printer driver, OPOS, POS for .NET, Linux®

Interface / CPU
		Model
Interface boards and CPU are mutual options with LTPDX47 series. Please see Interface / CPU in LTPD247/347 page for details.
USB interface board		IFD001-01UK
Serial interface board		IFD001-01SK
CPU		PTD00P01
