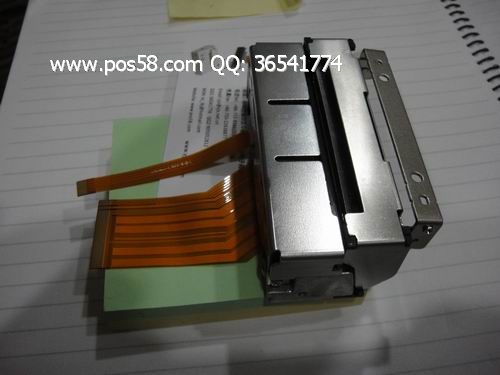

YJX-D245EF

产品名称：YJX-D245EF

产品编号：YJX-D245AEF

详细说明：

CAPD245/345

Easy Paper Operation Mechanism Low Voltage

Thermal Printer Mechanism

CAPD245/345

Build in auto paper cutter
Jam-free cutter design
Max. printing speed (CAPD245) : 100mm/sec
Platen latch function
Various drivers

Model		CAPD245	CAPD345
^1 Use recommended thermal papers. ^2 Excluding mounting part.
Printing	Method	Thermal line dot printing
	Number of dots/line	384	576
	Resolution (dots/mm)	8
	Paper width (mm)	58	80
	Printing width (mm)	48	72
	Speed (mm/sec) max	100	80
	Paper path	Curved
Detection	Head temperature	By thermistor
	Platen position	By mechanical switch
	Out of paper	By photo interrupter
	Cutter home position	By photo interrupter
Power supply (V)	Operation voltage (Vdd)	2.7 to 3.6 / 4.75 to 5.25
Power supply (V)	Operation voltage (Vp)	4.75 to 9.5	6.5 to 9.5
Peak current (A)	Head	3.66 (9.5V / 64dots) / 5.49 (9.5V / 96dots)	3.60 (9.5V / 64dots) / 5.40 (9.5V / 96dots)
	Motor	0.6
	Cutter	0.7
Auto cutter	Method	Slide type
	Paper thickness (μm)	54 to 80^*1
	Cutting type	Full cut / Partial cut (Leave center point)
	Operating time (sec/cycle) max	Approx. 1.0
	Cutting pitch (mm) min	10
	Cut frequency (cut/min) max	30
Service Life	Pulse activation (pulse)	100 million
	Abrasion resistance (km)	50^*1
	Paper cutting (cut)	500,000^*1
Operating temperature (˚C)		-10 to 50
Dimensions (W×D×H mm)		83.1 × 35.4 × 26.9^*2	105.1 × 35.4 × 27.2^*2
Mass (g)		Approx. 125	Approx. 148

Interface / CPU ^*3
	Model
^3 Interface boards and CPU are mutual options with LTPDX45 series. ^4 Please see "Associated software tool" for details.
USB interface board	IFD501-01UK
Serial interface board	IFD501-01SK
CPU	PTD50P01
Software^*4	Printer driver, Linux®
