EPL2052L2 & EPL2052S2 |
|
| 产品名称：EPL2052L2 & EPL2052S2 |
| 产品编号：EPL2052L2 & EPL2052S2 |
| 详细说明： |
EPL2050

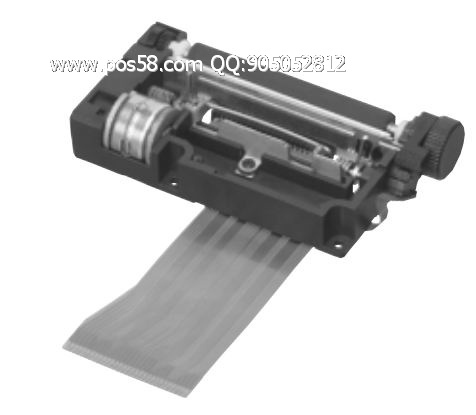

EPL2052S2
Paper roll
58mm
- Features & Applications
- Specifications
Features
- Connector of printer is 1 FPC
- Small size, Light weight
Applications
- EFT-POS terminalt
- PDA
- Handy instrument
- Portable terminals
To Page Top
Specifications
| Model |
EPL2052S2 |
| Resolution |
8 dots/mm |
| Total number of dots |
384 dots/lines |
| Printing speed |
Max. 500 dot-lines/sec. (62.5 mm/sec.) |
| Paper width |
58mm |
| Number of colums / line |
32
24 dots × 12 dots characters |
| Reliability |
1 &timees; 108 pulses, 100 km |
Operating
voltage |
Head, Motor |
4.2VDC to 8.5VDC |
| Logic |
2.7VDC to 5.25VDC |
| Current |
Head |
Max. 1.3A (at 7.2V, 64 dots coloring) |
| Motor |
Max. 0.5A |
Operating temperature
and humidity |
0 to 50°C, 35 to 85% RH (No condensation) |
Storage temperature
and humidity |
-25 to 70°C, 5 to 90% RH (No condensation) |
| Weight |
Approx. 50 g |
| Dimensions |
69 (W) × 37 (D) × 12.5 (H)mm |
All specifications are subject to change without prior notice. |
 |
