Products

thermal printer STP411B-320-E .pdf

thermal printer STP411B-320-E .pdf thermal printer STP411B-320-E .pdf thermal printer STP411B-320-E .pdf
Product name:thermal printer STP411B-320-E .pdf
Item:thermal printer STP411B-320-E .pdf
Details:

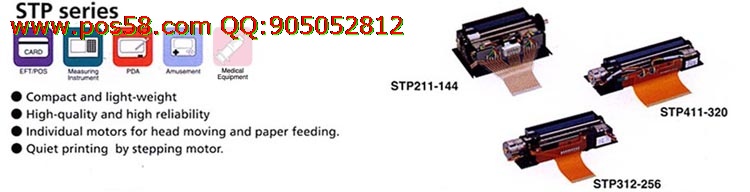

Model STP211 STP312 STP411
Model number -144 -192 -256 -256 -320
Print system Thermal serial dot system
Print direction Charater : Bidirectional logical seek ¡¡Graphics : Unidirectional logical seek
Print timing Synchronized with the stepping motor Synchronized with the stepping motor Synchronized with the stepping motor
Home position detection Mechanical switching system
Number of columns 24 32 42 42 40
Character matrix (HxW dots) 7 x 5 9 x 7
Character size(HxW mm) 2.40 x 1.50 2.40 x 1.20 2.40 x 1.26 2.40 x 1.60 2.47 x 1.88
Dot configuration(HxW dots) 8 x 144 8 x 192 8 x 256 9 x 320
Dot pitch(vertical mm) 0.35 0.35 0.35 0.35 0.28
Dot pitch(horizontal mm) 0.32 0.24 0.25 0.35 0.28
Printing width/Paper wodth(mm) 46.1 / 58 64.0 / 80 89.6 / 112
Printing speed(cps) 46 42 41 31 / 52*
Operating voltage range (V) 4.0-5.5 4.5-5.5
Operating temperature range(° C) 0 to 50
Dimensions(WxHxD mm) 84 x 47 x 27 126.5 x 45 x 20.4 153 x 44.5 x 20
Weight (g) Approx. 110 Approx. 120 Approx. 135

*Available depending upon the motor control method.
