APU-9347-B
Thermal Printers > Kiosk Printers > APU-9347

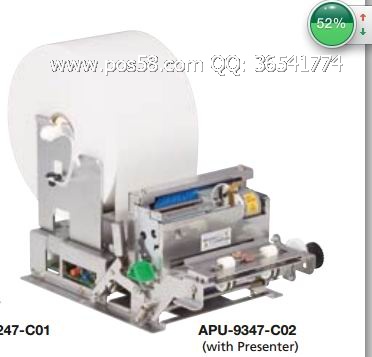

The 3" APU-9347 kiosk printer, with the best-in-class CAP9000 direct thermal printer mechanism, provides an ideal solution for tackling rugged self-service applications. Rated for a minimum of 150 km total printing and at least 1,000,000 cuts, the APU-9347 does not quit. 10" diameter paper roll support means lower operating costs and an impressive 8"/second print speed and support for a range of paper thicknesses ensures rapid delivery of receipts, tickets, or labels – every time.
- Up to 200 mm/sec max print speed
- Minimum 150 km total printing
- Minimum 1,000,000 cuts
- Supports 10" diameter paper roll
- Choice of USB and Serial interfaces
Downloads *registered users
- Datasheet
- APU-9347 Technical Reference
- Windows Drivers 32-bit
- Windows Drivers 64-bit
- Linux Driver
- OPOS Driver
Product Specifications
| Model |
APU-9347-B02U |
APU-9347-B02S |
| Printing |
Method |
Thermal line dot printing |
| Number of dots/line |
608 |
| Resolution (dots/mm) |
8 |
| Paper width (mm) |
80 |
| Printing width (mm) |
76 |
| Max speed (mm/sec) |
200 |
| Paper path |
Straight |
| Character matrix(H x W dots) |
24 x 24, 24 x 12, 16 x 16, 16 x 8 |
| Character size (H x W mm) |
3.0 x 3.0, 3.0 x 1.5, 2.0 x 2.0, 2.0 x 1.0 |
| Character type |
Optional Font, Downloaded Character, User-defined Character Extend Graphics Character set, Katakana Character set, JIS 1&2 level Kanji |
| Barcode |
UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE93, CODE128, EAN128, PDF417, Data Matrix, Maxi Code, QR Code |
| Power supply(V) |
21.6 to 26.4 |
| Interface |
USB |
Serial (RS-232C) |
| Input buffer |
2048 bytes |
| Command |
ESC/POS conformity* |
| Cutting |
Method |
Slide type |
| Cutting type |
Partial cut/Full cut |
| Service life |
Pulse activation (pulse) |
150 million |
| Abrasion resistance (km) |
150** |
| Life (cuts) |
1,000,000 |
| Operating temperature (°C) |
0 to 50 |
| Dimensions (W x D x H mm) |
165.15x301.25x177.1*** |
| Mass (g) |
Approx.5000 |
|
