Products

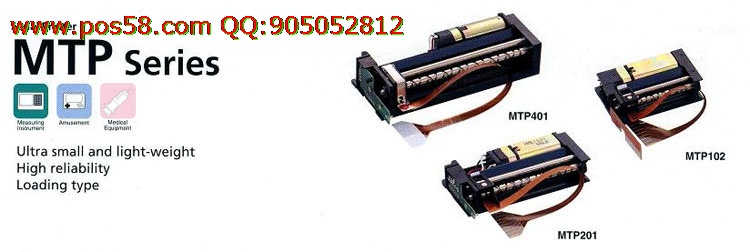

MTP401-40B

MTP401-40B
Product name:MTP401-40B
Item:MTP401-40B
Details:


Model
MTP102-16B MTP201-20B  MTP201-24B  MTP401-40B  MTP201-G128  MTP201- G166 MTP401-G280
Printing Type
Character
Graphic
Method
Thermal serial dot printing
Direction
Left to right
Timing
Synchronized with the tachogenerator
Paper width(mm)
38
58
80
58
80
Printing width(mm)
26.4
45.9
46
66.7
44.7
46
67.2
Speed(line/sec) max
1.2
1.0
0.9
0.5
0.9
0.9
0.5
Paper path
Curved
Character matrix(HxW dots)
7 x 5
Character size(HxW mm)
2.4 x 1.2
2.4 x 1.6
2.4 x 1.4
2.4 x 1.2
2.4 x 1.7
2.4 x 1.4
2.4 x 1.2
Number of columns
16
20
24
40
18
24
40
Line spacing(mm)
3.8
2.8
Character spacing(dot)
2
0
Detection Home position
Mechanical Switch
Power supply(V)
4.0 to 6.0
Peak current(A)
3.2(5V on)
Service life (Lines)
500,000 *1
Operating temperature(°C)
0 to 50
Dimensions(WxHxD mm)
48.0 x 31.0 x 13.8 *2
70.0 x 34.0 x 14.4 *2
91.5 x 35.5 x 20.0*2
70.0 x 34.0 x 14.4 *2
91.5 x 35.5 x 20.0*2
Mass(g)
Approx.35
Approx.40
Approx.50
Approx.40
Approx.50
