thermal printer head for Grand TP POS58L

thermal printer head for Grand TP POS58L

thermal printer head for Grand TP POS58L

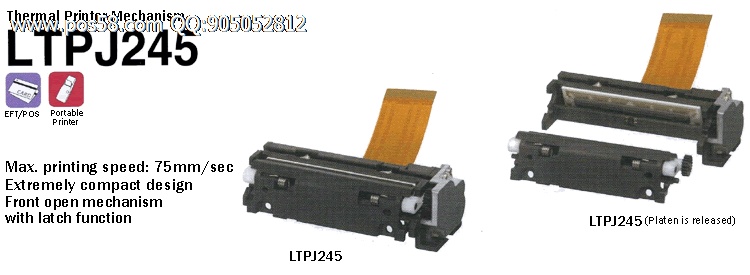

Product name：thermal printer head for Grand TP POS58L

Item：LTPJ245E-C384-E

Details：

Model		LTPJ245
Printing	Method	Thermal line dot printing
	Number of dots/line	384
	Resolution(dots/mm)	8
	Paper width(mm)	58
	Printing width(mm)	48
	Speed(mm/sec) max	75
	Paper path	Straight
Detection	Head temperature	By thermistor
Detection	Out of Paper detection	By photo interrupter
Power supply(V)	Operation Voltage(Vdd)	3.0 to 3.6 / 4.75 to 5.25
Power supply(V)	Operation Voltage(Vp)	5.5 to 9.5
Peak current(A)	Head	3.6 (9.5V/64 dots on)
Peak current(A)	Motor	0.6
Service life	Pulse activation(pulse)	100 million
Service life	Abrasion resistance(km)	50 ^*1
Operating temperature(°C)		-10 to 50
Dimensions(WxHxD mm)		68.5 x 31.5 x 22.0^*2
Mass(g)		Approx. 39

^*1 Use recommended thermal papers. ^*2Excluding protrusion.
