Products

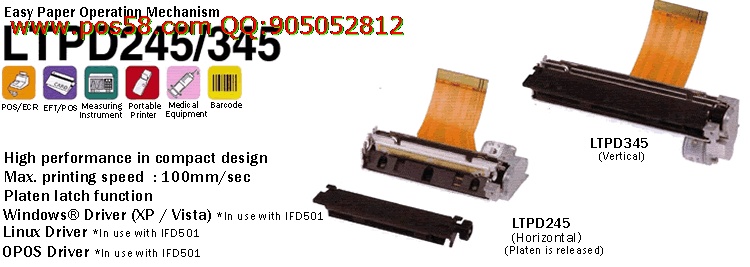

LTPD245B-384-E

LTPD245B-384-E
Product name:LTPD245B-384-E
Item:LTPD245B-384-E
Details:

Model
LTPD245
LTPD345
Printing Method
Thermal line dot printing
Number of dots/line
384
576
Resolution(dots/mm)
8
Paper width(mm)
58
80
Printing width(mm)
48
72
Speed(mm/sec) max
100
80
Paper path
Curved
Detection Head temperature
By thermistor
Platen position detection
By mechanical switch
Out of Paper detection
By photo interrupter
Power Supply(V) Operation Voltage(Vdd)
2.7 to 3.6 / 4.75 to 5.25
Operation Voltage(Vp)
4.75 to 9.5
Peak current(A) Head
3.66 (9.5V / 64 dots)
3.60 (9.5V / 64 dots)
5.49 (9.5V / 96 dots)
5.40 (9.5V / 96 dots)
Motor
0.6
Service Life Pulse activation (pulse)
100 million
Abrasion resistance(km)
50 *1
Operating temperature(°C)
-10 to 50
Dimensions(WxHxD mm) Horizontal
69.0 x 30.0 x 15.0 *2
91.0 x 30.0 x 15.0 *2
Vertical
69.0 x 15.0 x 30.0 *2
91.0 x 15.0 x 30.0 *2
Mass(g)
Approx. 40
Approx. 58

*1 Use recommended thermal papers. *2 Excluding protrusion.
Windows ® is the registered trademark of Microsoft Corporation (USA).
[Next:LTPD347A-576-E]→
