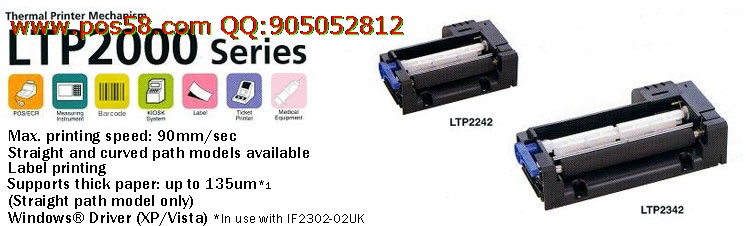

Thermal printer Mechanism SII LTP2442C-S832A-E.PDF thermal printer |
|
|
| Product name：Thermal printer Mechanism SII LTP2442C-S832A-E.PDF thermal printer |
| Item：LTP2442C-S832A-E.PDF |
| Details： |
PDF LTP2442C-S832A-E.PDF
如需要更详细的PDF或参数，请联系我们，或E-MAIL给我公司
QQ905052812
MSN: sz_lkj@hotmail.com
For a more detailed PDF or parameters, please contact us or to our E-MAIL
LTP2442
LTP2442D
LTP2442D-C832
LTP2442D-C832-E
LTP2442D-C832A-E
LTP2442D-C832A
LTP2442C
LTP2442C-S832
LTP2442C-S832-E
LTP2442C-S832A
LTP2442C-S832A-E
LTP2442C-S832A-E.PDF
|
|
LTP2242 |
LTP2342 |
LTP2442 |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
432
|
576
|
832
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
60  |
80 |
112 |
| Printing width(mm) |
54
|
72
|
104
|
| Speed(mm/sec) max |
90
|
75
|
| Paper path |
Straight / Curved
|
| Detection |
Head-updetection |
By thermistor
|
| Platen position detection |
By mechanical switch
|
| Out of paper detection |
By photo interrupter
|
| Power supply(V) |
Operation voltage(Vdd) |
4.75 to 5.25
|
| Operation voltage(Vp) |
21.6 to 26.4
|
| Peak current(A) |
Head |
4.3(26.4V/288dots)
|
| Motor |
0.5
|
| Service life |
Pulse activation(pulse) |
100 million
|
| Abrasion resistance(km) |
50 *1
|
| Operating temperature(°C) |
0 to 50
|
| Dimensions(WxHxD mm) |
85.2 x 61.4 x 27.0 *2
|
106.4 x 61.4 x 27.0*2
|
138.2 x 61.4 x 27.0 *2
|
| Mass(g) |
Approx.115
|
Approx.135
|
Approx.160
|
|
*1 Use recommended thermal papers *2Excluding protrusion
Windows ® is the registered trademark of Microsoft Corporation (USA).
|
|
Interface
|
|
Model
|
IF2303-01B
|
IF2303-01BK |
IF2302-02UK |
| CPU |
PT230P01
|
| Operating Voltage(V) |
Vp:21.6 to 26.4, Vcc:4.5 to 5.5
|
| Character matrix(H x W dots) |
16 dots characters : 16 x 8, 16 x 16 24 dots characters : 24 x 12, 24 x 24
|
| Character type |
Optional font |
Yes
|
Yes
|
Yes
|
| Downloaded Character |
Yes
|
Yes
|
Yes
|
| User-defined Character |
Yes
|
Yes
|
Yes
|
| Extend Graphics Character set |
Yes
|
Yes
|
Yes
|
| Katakana Character set |
No
|
Yes
|
Yes
|
| JIS 1&2 level Kanji |
No
|
Yes
|
Yes
|
| Communication interface |
Parallel, Serial (C-MOS)
|
USB
|
| Dimensions(WxHxD mm) |
90.0 x 100.0 x 22.0
|
|
CPU
|
|
Model
|
PT230P01
|
| Package form |
128pin QFP
|
| Operating Voltage(V) |
Vp:21.6 to 26.4, Vcc:4.5 to 5.5
|
| Operating frequency(MHz) |
18.43+/-0.5%
|
| Configuration |
C-MOS LSI
|
| Communication interface |
Parallel, Serial
|
| Character type |
Extended graphics character set
Other characters are available with CGs*3 or external RAM |
| Character matrix (H x W dots) |
16 dots characters: 16*8, 16*16
|
|
24 dots characters: 24*12, 24*24
|
| Dimensions(WxHxD mm) |
22.0 x 16.0 x 3.1
|
|
*3 CG ROM: Japanese, Korean
|
| Auto Cutter |
|
Model
|
ACU2224
|
ACU2324 |
ACU2424 |
| Cutting |
Method |
Slide type
|
| Paper width(mm) |
60 |
80 |
112 |
| Paper thickness(µm) |
65 to 125 *4
|
| Cutting type |
Full cut / Partial Cut (Leaving center point)
|
| Operating time (sec/cycle) max |
0.5
|
| Cutting pitch(mm) min |
10
|
| Cut frequency (cut/min) max |
30
|
| Operating Voltage(V) |
Motor |
21.6 to 26.4
|
| Detector(control switch) |
4.75 to 5.25
|
| Starting Current (A) |
1.2
|
| Life(cut) |
300,000
|
| Dimensions(WxHxD mm) |
79.0 x 66.5 x 16.5
|
100.0 x 66.5 x 17.0
|
126.0 x 69.3 x 17.5
|
| Mass(g) |
Approx.120
|
Approx.200
|
Approx.260
|
|
*4 Use recommended thermal papers.
|
|
 |
