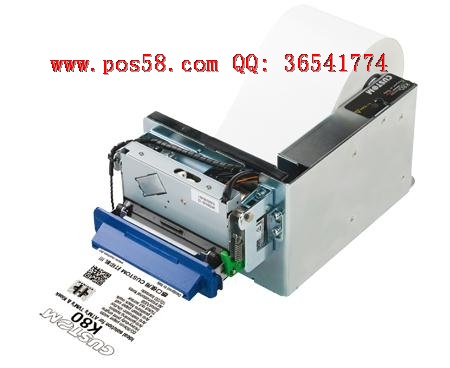

K80 - TORNADO PRINTER
K80 - TORNADO PRINTER
ASK FOR INFORMATION
ABOUT THIS PRODUCT
80MM RECEIPT/TICKET PRINTER
- 200dpi best printing quality
- Paper width from 76 to 80mm
- Paper roll (diameter 180mm on board)
- RS232 and USB interface
- 1D/ 2D barcodes printing capability (QRCODE)
- International fonts on board: any language available
- Highly reliable cutter
- Sensors: Head temperature, paper presence, near paper end, black mark 6 position, ticket out
- K80 - TORNADO PRINTER
 K80 - TORNADO PRINTER- K80 - TORNADO PRINTER
-
Ideal solution for ATM's VTM's & Self Service Kiosk
- Ultra-compact
- Heavy-duty alluminium printing engine
- Anti-jamming system
- Anti-instrusion shutter
- Anti-splash paper exit
- On/off switch
SOFTWARE CePrinterSet : to update logos,edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.
-
| Printing Method |
Thermal, fixed head |
|
|
|
|
| Number of dots |
8 dot/mm |
|
|
|
|
| Resolution |
203 dpi |
|
|
|
|
| Printing (mm/sec) |
150 mm/s |
|
|
|
|
| Character set |
54 character code tables
Extended chinese GB18030-2000, Korean PC949 |
|
|
|
|
| Supported Barcode |
UPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE |
|
|
|
|
| Printing Format |
Height/Width from 1 to 8, bold, reverse, underlined, italic |
|
|
|
|
| Printing Direction |
Normal, 90°, 180°, 270° |
|
|
|
|
| Paper width |
76, 80 ± 0,5 mm |
|
|
|
|
| Paper weight |
from 55 g/m2 to 80 g/m2 |
|
|
|
|
| Paper thickness |
from 63 μm to 88 μm |
|
|
|
|
| Printing width |
from 52 to 80mm |
|
|
|
|
| Roll Dimension |
max 180 mm |
|
|
|
|
| Sensors |
Head temperature, paper presence, near paper end, black mark, ticket out |
|
|
|
|
| Emulation |
CUSTOM/POS |
|
|
|
|
| Interfaces |
USB + RS232 Serial |
|
|
|
|
| Data Buffer |
8 Kbytes |
|
|
|
|
| Flash Memory |
768 Kbytes internal, 4 Mbytes external |
|
|
|
|
| RAM Memory |
128 Kbytes |
|
|
|
|
| Graphic Memory |
1 logo (640x409 dots) |
|
|
|
|
| Drivers |
Windows XP
VISTA (32/64bit)
Windows 7 (32/64bit)
Windows 8 (32/64bit)
Windows 8.1 (32/64bit)
Linux (32/64bit) |
|
|
|
|
| Power supply |
24 Vdc ±10% (optional external power supply) |
|
|
|
|
| Medium consumption |
0.8 A (12,5% dots on) |
|
|
|
|
| MTBF |
165 245 hours (electronic board) |
|
|
|
|
| Head Life |
100 Km |
|
|
|
|
| MCBF |
1.000.000 cut |
|
|
|
|
| Operating temperature |
from 0°C to +50°C |
|
|
|
|
| Dimensions |
258(L) x 103.5(H) x 135(W) mm |
|
|
|
|
| Weight |
1250 g |
|
|
|
|
- OPTIONS
- AVAILABLE VERSIONS
-
- Near paper end sensor for paper roll exceeding 180mm (A/B/C version)
-
3 version available:
- K80 - TORNADO PRINTER - A: With output paper mouth, anti intrusion shutter and ticket sensor, low paper level sensor for roll up to 180mm
- K80 - TORNADO PRINTER - B: Without output paper mouth and anti intrusion shutter, low paper level sensor for roll up to 180mm
- K80 - PRINTING KIT - C: kit including printer mechanism, cutter & board
-
