EPSON Impact Mini Printers Shuttle impact dot matrix M-182.pdf printer

EPSON Impact Mini Printers Shuttle impact dot matrix M-182.pdf  printer EPSON Impact Mini Printers Shuttle impact dot matrix M-182.pdf  printer

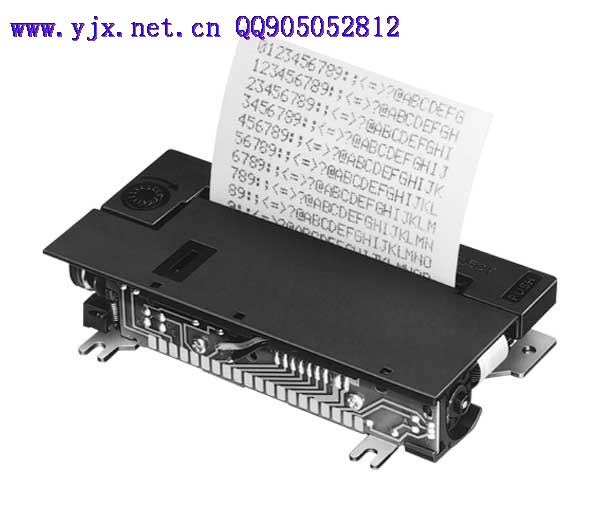

Product name:EPSON Impact Mini Printers Shuttle impact dot matrix M-182.pdf printer
Item:M-182.pdf printer
Details:


Epson M-182 Series

Epson M-180 Series

Impact Mini Printers

Fast and highly durable



Printing Method Shuttle impact dot matrix
Printing Format
Font 5 x 7
Column capacity M-180: 24 columns
M-181: 30 columns
M-182: 36 columns
M-183: 42 columns
M-185: 18 columns
M-186: 20 columns
Character size M-180: 1.7(W) x 2.6(H) mm
M-181: 1.4(W) x 2.6(H) mm
M-182: 1.2(W) x 2.6(H) mm
M-183: 1.1(W) x 2.6(H) mm
M-185: 1.7(W) x 2.6(H) mm
M-186: 1.7(W) mm
Line spacing M-180/M-181/M-182/M-183/M-185: 3.7mm (in case of 5 x 7 font and 3 dots / line paper feed)
M-186: -
Column spacing M-180: 2.0mm
M-181: 1.6mm
M-182: 1.3mm
M-183: 1.2mm
M-185/M-186: 2.0mm
Number of total dots M-180: 144 dots / line
M-181: 180 dots / line
M-182: 216 dots / line
M-183: 252 dots / line
M-185: 108 dots / line
M-186: 120 dots / line
Printing Speed M-180: 1.7 lines / sec
M-181: 1.3 lines / sec
M-182: 1.1 lines / sec
M-183: 1.0 lines / sec
M-185: 1.7 lines / sec
M-186: Typ 83ms/dotline
Printhead
Terminal Voltage M-180/M-181/M-182/M-183/M-185: 3.3 to 5.5 VDC (3.3 to 5.5 VDC by Ni-Cd battery)
M-186: 5.0 to 6.0 VDC
Peak current M-180/M-181/M-182/M-183/M-185: Approx. 3 A / solenoid
M-186: 3.5 A/ solenoid
Motor
Terminal Voltage 3.8 to 5.5 VDC
Mean current Approx. 0.2 A
Paper
Dimensions M-180/M-181/M-182/M-183: 57.5± 0.5 mm (W) x dia. 83mm maximum
M-185: 44.4±0.5mm(W)
M-186: Card Type (maximum width: 54mm)
Total Thickness M-180/M-181/M-182/M-183/M-185: 0.06 to 0.085 mm
M-186: 0.21 to 0.25mm
Copy Capability Original + one copy
Ribbon Cassette ERC-09/22
Ambient Temperature 0° to 50°C
Reliability
MCBF M-180/M-181: 1.0 x 106 lines
M-182/M-183: 0.7 x 106lines
M-185/M-186: 1.0 x 106lines
Printer M-180/M-181: 1.0 x 106 lines
M-182/M-183: 0.7 x 106lines
M-185/M-186: 1.0 x 106lines
Overall Dimensions M-180/M-181/M-182/M-183/M-185: 91.0 (W) x 46.9 (D) x 15.8 (H)mm
M-186: 93.9 (W) x 59.3 (D) x 21.1 (H)mm
Weight M-180/M-181/M-182/M-183/M-185: Approx. 95 g
M-186: Approx. 140 g

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
