ELM205LV ELM205HS |
|
| Product name：ELM205LV ELM205HS |
| Item：ELM205LV ELM205HS |
| Details： |

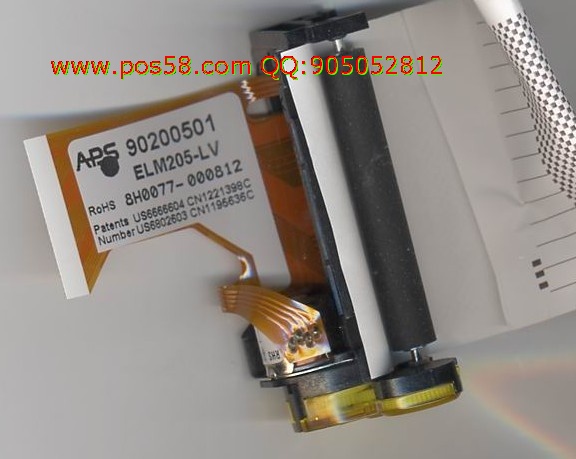

ELM205-LV
Low weight housing design
FEATURES
- Compact design - low weight housing design
- High reliability due to its patented easy loading design
- Print speed up to 75 mm/s for LV and up to 90 mm/s for HS printers
- No loose wiring - a single SHORT flex-cable houses all wiring
- Ergonomic design - centered paper path allows uniform and aesthetic
Applications
- Automotive
- Calculators
- Data terminal devices
- EFT POS
- Fiscal printers
- Hand held terminals
- Measuring instruments and analysers
- Medical equipment
- Portable printers and terminals
- Taxi meters
Specifications
- Max. paper thickness (um):
- 80
- Paper loading:
- Easy loading
- Printing speed (mm/s):
- 75
- Paper detection:
- Opto sensor
- Temperature detection:
- Thermistor
- Head-up or Cover-open detection:
- Opto sensor
- Voltage range (Logic | Head):
- 2.7-5.5 V | 2.7-9.5 V
- Dot resistance (Ohm):
- 123 ± 3%
- Energy per dot (mJ):
- 0.16
- Stepper motor (Ohm):
- Bipolar (12)
- Life/reliability:
- 100km/ 100M pulses
- Operating temperature (°C):
- -20 to +60
- Operating humidity (%):
- 10 to 90 non cond.
- Dimensions (WxDxH mm):
- 67.5x30.7x30.8
|
 |
