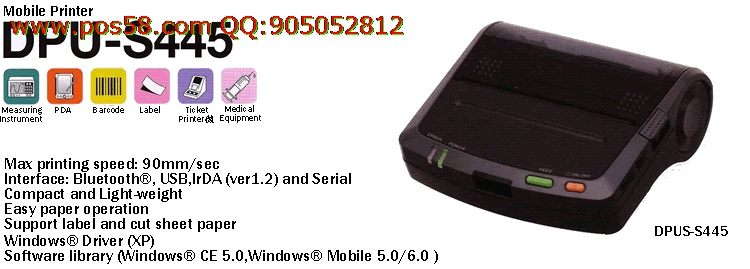

DPU-S445 |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
832
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
112
|
| Printing width(mm) |
104
|
| Speed(mm/sec) max |
90
|
Outside diameter of paper
roll (mm) max |
 50
|
| Character matrix(HxW dots) |
24 x 12, 24 x24, 16 x 8, 16 x 16
|
| Character size(HxW mm) |
3.0 x 1.5, 3.0 x 3.0, 2.0 x 1.0, 2.0 x 2.0
|
| Number of columns |
52, 26, 69, 34
|
| Type of Paper |

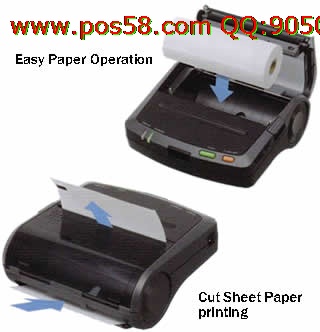

Roll Paper, Label Roll Paper, Cut Sheet Paper
|
| Character type |
Optional Font, Downloaded Character, User-defined Character, Extend Graphics Character set, Katakana Character set, JIS1&2 level Kanji
|
| Barcode |
UPC-A/E, JAN (EAN) 8/13, ITF, CODE39, CODABAR,CODE128, PDF417,Data Matrix, Maxi Code,QR Code
|
| Power supply(V) |
Li-lon Battery , Specified AC adapter
|
| Communication interface |
Bluetooth® *1, USB,IrDA (ver1.2) and Serial
|
| Input buffer |
4K byte
|
| Command |
ESC/P *2 conformity
|
| Cutting |
Tear bar
|
| Operating |
Temperature(°C) |
0 to 50
|
| Humidity(%RH) |
30 to 80 (Non condensation)
|
| Service life(km) |
50 *3
|
| Dimensions (HxW mm) |
145 X 135 X 58 *4
|
| Mass(g) |
Approx. 490 *5
|
| Standard |
FCC, CE, VCCI, CCC
|
| Option |
AC Adapter, Battery pack, Battery Charger, AC cable , USB cable , Serial cable
|
|
*1 Only Bluetooth® model. *2 ESC/P TM : Registered trademark of SEIKO EPSON CORP.
*3 Use recommended thermal papers *4 Excluding protrusion.
*5 including battery,excluding roll paper
Microsoft® is the registered trademark of Microsoft Corporation (USA).
|
|
Serial interface specification
|
Item
|
specification
|
|
Baud bit
|
1200, 2400, 4800, 9600, 19200, 38400,
57600,115200 bps
|
|
Data bit
|
7 bits, 8 bits
|
|
Parity bit
|
Odd, Even, or None
|
|
Stop bit
|
1 bits, 2 bits
|
|
Control method
|
H/W Busy, Xon / Xoff
|
|
|
|
UBS interface specification
|
USB printerclass 2.0 conformity
|
|
|
Buetooth® interface specification
|
Based on Buetooth® Ver. 2.0 + EDR
|
|
Infrared interface specification
|
Based on IrDA Ver. 1.2
|
|
Based on BHT Ir protocol
|
|
|
