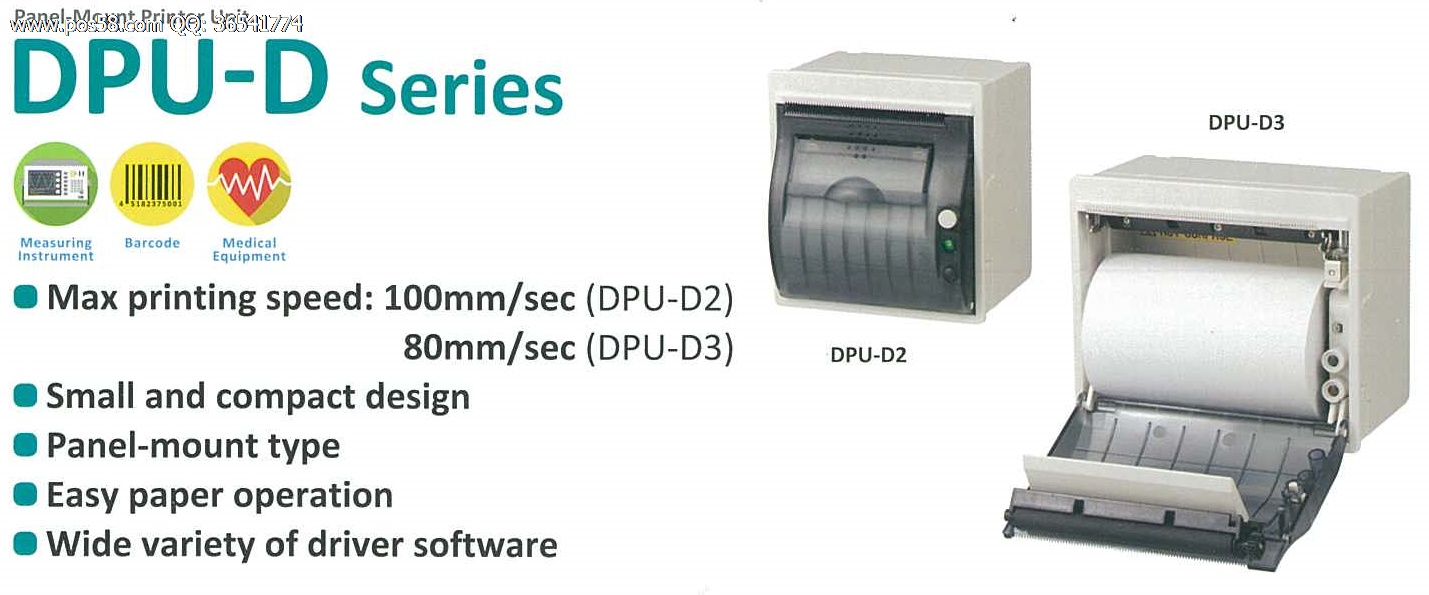

DPU-D2-00A

DPU-D2-00A
Product name:DPU-D2-00A
Item:DPU-D2-00A
Details:

Model
DPU-D2-00A
DPU-D3-00A
Printing Method
Thermal line dot printing
  Number of dots/line
384
576
  Resolution(dots/mm)
8
  Paper width(mm)
58
80
  Printing width(mm)
48
72
  Speed(mm/sec) max
100 (8.5V)
80 (8.5V)
  Paper path
Curved

  Character matrix(HxW dots)
24 x 12, 24 x24, 16 x 8, 16 x 16
  Character size(HxW mm)
3.0 x 1.5, 3.0 x 3.0, 2.0 x 1.0, 2.0 x 2.0
  Number of columns
16, 32, 24, 48
24, 48, 36, 72
Character type
Extended graphics charcter, Katakana character set, CP1252, Optional font, Downloaded Character,
User-defined Character, JIS 1& 2 level Kanji


Barcode
UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE93, CODE128 , PDF417, QR Code, MaxiCode, Data Matrix
Power supply(V)
Driving Voltage (5.0 to 9.0)
Data input method
Serial l/USB
Input buffer
4,096 bytes
Command (W x D x H mm)
ESC/POSTM *1 conformity
Cutting
Tear bar
Operating Temperature(°C)
-10 to 50
Service life (km)
50 *1
Dimensions (W x D x H mm)
80.0 x 68.8 x 85.5 *2
102.0 x 68.8 x 85.5 *2
Mass(g)
Approx. 180
Approx. 210
Software
Printer Driver

. * 1 Use recommended thermal papers *2 Excluding protrusion





Serial interface specification
Item
Specification
Baud rate
9600,19200,38400,115200
Data bit
8 bits
Parity bit
Odd, Even or None
Stop bit
1 bit
Control method
BUSY, Xon / Xoff

*3 Select by utility software


USB interface specification
USB printerclass 2.0 conformity
