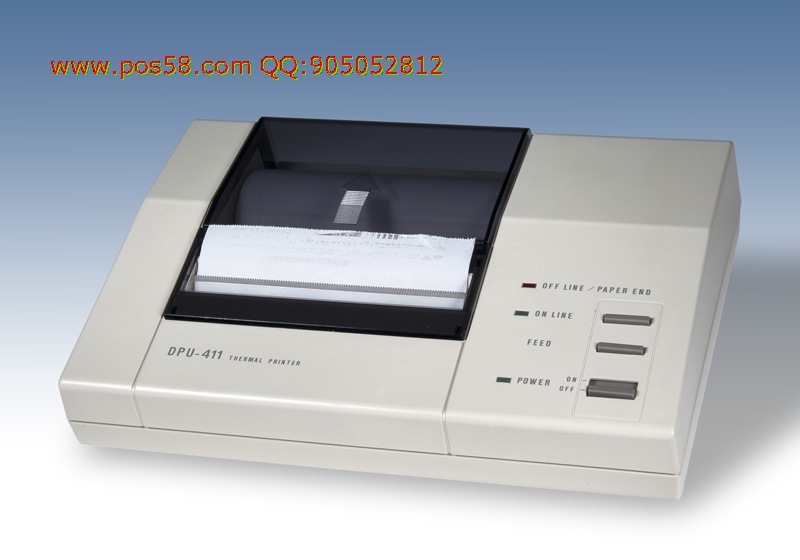

DPU-411 (Thermal Printer) |
|
| Product name：DPU-411 (Thermal Printer) |
| Item：DPU-411 (Thermal Printer) |
| Details： |
DPU-411 (Thermal Printer) and the 361T
| Application : |
DPU-411 (Thermal Printer) |
| Vendor : |
Seiko Instruments |
| Platform : |
Serial Printer |
| Version : |
NA |
| Cabling : |
319-83 (DB25p male-to-male, pin-to-pin, cable) |
| Notes : |
DPU-411-20BU
DPU-411-20BE
DPU-411-21BU
DPU-411-21BE
The Seiko printer is a standard DCE type serial device. It is equipped with a DB25s (female) connector. Interfacing to an X-Rite is via a straight-through (pin-to-pin) modem type cable. The above cable satisfies this need. Customer may choose to purchase a cable locally. If this is the case then a male-to-male, straight-through, modem cable will do the trick (ie., pin 1 to pin 1... pin 25 to pin 25). Male DB25p connectors are needed on both ends.RCI = off (lowercase)
PRT = off (lowercase)
XON/XOFF = XOFF
PIN5 = off
Baud =1200
HDR = on/off (Header - On or Off)
DPT = on/off (Decimal Point - On or Off)
COMP = off
CR = CR LF |
|
 |
