Citizen CT-S310II Thermal Receipt Printer

Citizen CT-S310II Thermal Receipt Printer
Product name:Citizen CT-S310II Thermal Receipt Printer
Item:Citizen CT-S310II Thermal Receipt Printer
Details:

CT-S310II

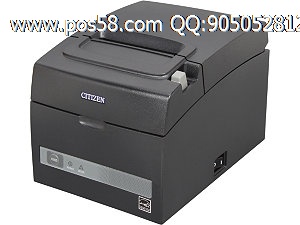

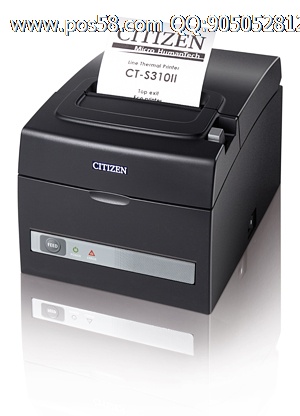

Citizen CT-S310II Thermal Receipt Printer

The new Citizen CT-S310II receipt printer is a green step forward towards reducing negative impact on the environment and it is ENERGY STAR® Qualified. We invite you to take advantage of its benefits including lower cost for more features, lower power consumption and excellent paper savings.

Environmentally Friendly
CT-S310IIFrom production and packaging to utilization and recycling the CT-S310II fulfills today's demand for green IT products. Global warming, sustainability, as well as living and being green are on the minds of people everywhere. Reducing the amount of paper used and wasteful power consumption is a big factor in reducing global warming. Citizen Systems new CT-S310II receipt printer reduces power consumption by up to 45% and has a save paper function which can save up to 20% of receipt paper. The Citizen CT-S310II is ENERGY STAR® Qualified, helping reduce a shop keeper's or a restaurant's carbon footprint.

Built-in Power Supply
The built-in ENERGY STAR® power supply is most efficient at managing power consumption. Eliminates unsightly power "brick" and frees up space.

Dual Interface
With a USB and serial interface on board, the CT-S310II is a future-proof investment.

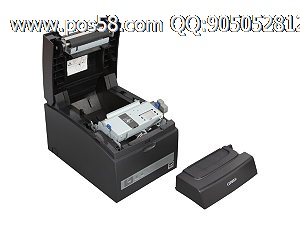

Tool-free Maintenance

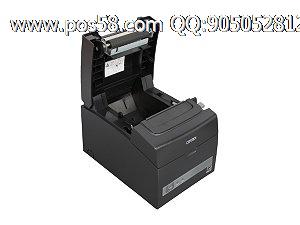

Paper jam? No problem. The CT-S310II comes with the same intelligent service features as Citizen's high-end printers. The easily removable auto cutter and printer head make for quick and easy maintenance.

Long Life Print
The new LLP functions can extend the print head life to 200km or more.





Features

CT-S310II
  • Low Power consumption
  • Standby mode (lowest in its class)
  • ENERGY STAR compliant
  • Save-paper function
  • Halogen-free housing
  • Long-life head mode (300km)
  • Cutter jam release function
  • Longer cutter life delivers lower maintenance costs
  • Greater reliability delivers longer life & lower maintenance costs
  • Easy maintenance
  • Packaging is made from recycled materials and is recyclable
  • USB standard meets market standardization requirements
  • 2D bar code support allows wider applications
  • Built in buzzer provides audible alert without adding extra cost devices
  • Printer drivers included are: Windows XP and 7 (32- and 64-bit), Java POS, OPOS and CUPS


Applications

CT-S310II
  • Receipt
  • Coupon
  • Tickets
  • Daily Report
  • Kitchen
  • Delivery Slip
  • Weigh Scales
  • Kiosks



Specifications

Model CT-S310II
Printing method Line thermal dot print method
Print width 72mm / 576 dots, 64mm / 512 dots, 52.5mm / 420 dots, 48mm / 384 dots, 45mm / 360 dots, 48.75mm / 390 dots, 68.25mm / 546 dots
Dot density 203 dpi (8 × 8 dots per mm)
Printing speed Max. 160mm/sec 1280 dots lines/sec. (fastest, print density 100%)
Number of print columns
Font Maximum number of characters
(columns)
Dot configuration
(dots)
80mm 58mm
Font A 48 35 12 × 24
Font B 64 46 9 × 24
Font C 72 52 8 × 16
Character size
(W × H)
Font A: 1.50 × 3.00mm
Font B: 1.13 × 3.00mm
Font C: 1.00 × 2.00mm
Character type Alphanumeric, International, PC437 / 850 / 852 / 857 / 858 / 860 / 863 / 864 / 865 / 866 / WPC1252 / Katakana / Thai code 18
User memory 384Kb (capable of storing user-defined characters and logos)
Barcode type UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR (NW-7), CODE 93, PDF417, QR Code, GS1-DataBar
Line spacing 1/6 inch (4.25mm) (changeable using commands)
Paper roll
Width Paper roll: 80 + 0/-1mm, 58mm + 0/-1
Thickness 65 to 75µm (core tube diameter: inner 12mm / outer 18mm)
75 to 85µm (core tube diameter: inner 25.4mm / outer 32mm)
Diameter F 83mm or less

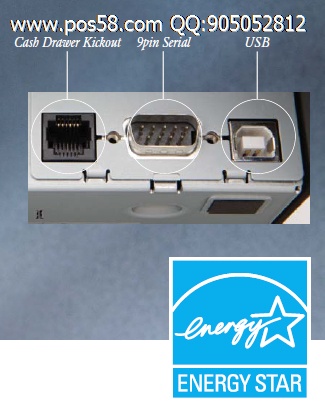

Interface USB, Serial (RS-232C compliant)
Cash drawer kick-out Supports 2 cash drawers
Buffer size 4K bytes / 45 bytes
Power consumption Approx. 32W (normal printing), 0.18W (USB power save mode)
Power source Rated input: AC 100 to 240V, 50/60Hz, 150VAC
Weight (approx.) 4lb (1.8kg)
Outer dimensions
(W × D × H)
5.5 x 7.6 x 5.2 inches (140 × 195 × 132mm)
Operating temperature and humidity 41 to 113°F (5 to 45°C), 10 to 90% RH (no condensation)
Storage temperature and humidity -4 to 140°F (-20 to 60°C), 10 to 90% RH (no condensation)
Reliability Print head life: 93 miles (150km), 300 million pulses
Auto cutter life: 2 million cuts
Safety standards UL, C-UL, FCC class A, TÜV-Bauart, CE marking, CCC

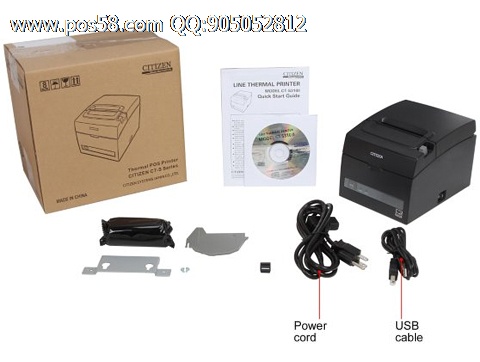

What's in the Box

box
