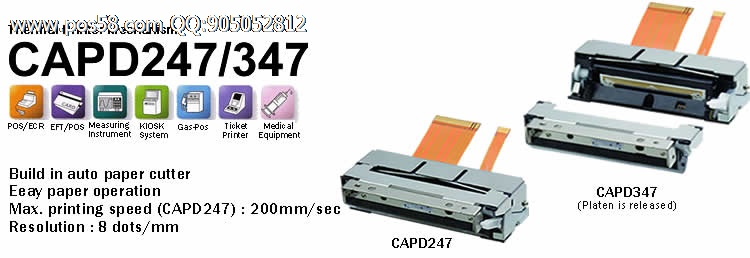

CAPD347F-E PRINTER MECHANISMS |
|
|
| Product name：CAPD347F-E PRINTER MECHANISMS |
| Item：CAPD347F-E PRINTER MECHANISMS |
| Details： |
|
Model
|
CAPD247
|
CAPD347 |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
432
|
576
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
58
|
80
|
| Printing width(mm) |
54
|
72
|
| Speed (mm/sec)max |
200
|
170
|
| Paper path |
Curved
|
Detection
|
Head temperature |
By thermistor
|
| Platen position detection |
By mechanical switch
|
| Out of paper detection |
By photo interrupter
|
| Cutter home position detection |
By photo interrupter
|
| Power supply (V) |
Operation voltage (Vdd) |
2.7 to 3.6/ 4.75 to 5.25
|
| Operation voltage (Vp) |
21.6 to 26.4
|
Peak current (A)
|
Head |
2.61 (26.4V/144 dots)
|
|
5.23 (26.4V/288 dots)
|
| Motor |
0.44
|
| Cutter |
0.55
|
Auto Cutting
|
Method |
Slide type
|
| Paper thickness (µm) |
54 to 90 *1
|
54 to 78 *1
|
| Cutting type |
Partial cut / Full cut (Leave center point)
|
| Operation time (sec/cycle) max |
Approx. 0.5
|
| Cutting pitch(mm)min |
10
|
| Cut frequency(cut/min) max |
30
|
| Service life |
Pulse activation(pulse) |
100 million
|
| Abrasion resistance(km) |
100 *1
|
| Life(cut) |
700,000 *1
|
| Operating temperature(°C) |
-10 to 50
|
| Dimensions(WxHxD mm) |
83.1 x 35.4 x 26.9 *2
|
105.1 x 35.4 x 27.2*2 *2
|
| Mass(g) |
Approx. 131
|
Approx. 154
|
|
|
*1 Use recommended thermal papers
*2 Excluding mounting part |
Option
| |
Model |

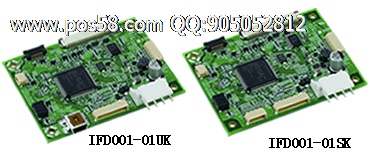

| USB interface board |
IFD001-01UK
|
| Serial interface board |
IFD001-01SK
|
| CPU |
PTD00P01
|
|
 |
|
 |
