9 PIN DOT MATRIX PRINTERS ML280 Elite

9 PIN DOT MATRIX PRINTERS ML280 Elite

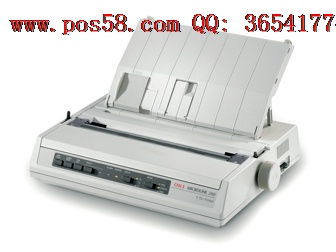

Product name:9 PIN DOT MATRIX PRINTERS ML280 Elite
Item:9 PIN DOT MATRIX PRINTERS ML280 Elite
Details:


9 PIN DOT MATRIX PRINTERS

ML280 EliteML280 Elite_hero_left



Key specifications

  • Number of copies:4 (one original + 3 copies)
  • Printing width:80 characters (at 10cpi)
  • Print speed:375cps (fastest print speed) 333cps (at all cpi in high speed draft) 62.5cps (at all cpi in near letter quality)

Full specifications

Other Specifications

  • Warranty:1 year
  • Note:DC version also available (10 to 30V DC) Specifications subject to change without prior notice. All trademarks acknowledged.
  • User interface:Centronics parallel, USB
  • Accoustic noise:54dB(A), 51dB(A) (quiet mode)
  • Weight:4.5Kg
  • Dimensions(HxWxD):80mm x 372mm x 275mm
  • Frequency:50/60Hz
  • Voltage requirements:220-240VAC (+/-10%)

Paper Handling

  • Optional paper handling:Cut sheet feeder Roll paper stand
  • Standard paper handling:Rear feed Bottom feed Top feed
  • Paper path 3:Top feed of single, cutsheet forms
  • Paper path 2:Bottom paper feed for continuous forms with straight paper path
  • Paper path 1:Rear paper feed for continuous forms
  • Other media:Thin card Labels (maximum thickness of 0.2mm)
  • Paper weight:50-90 g/m2 (cut sheet) 35-52 g/m2 (continuous forms)
  • Paper dimensions:Continuous paper width 241-254mm (including perforations) Cut sheet 216 x 356mm (maximum)
  • Number of copies:4 (one original + 3 copies)

Printing Characteristics

  • Memory:128KB
  • Built in barcodes:UPC A, UPC E, EAN8, EAN13, Code 39, Int. 2 of 5, Code 128 (A,B,C), POSTNET
  • Font styles:Emphasised, enhanced, double width, italics
  • Character pitch:10, 12, 15, 17.1 and 20 cpi
  • Fonts:NLQ Courier, High Speed Draft, Utility, Barcodes
  • First printable line:15mm (cut sheet paper) from top of page 16.9mm (continuous forms) from top of page
  • Graphic resolution:240 x 216dpi (maximum resolution)
  • Printing width:80 characters (at 10cpi)
  • Print speed:375cps (fastest print speed) 333cps (at all cpi in high speed draft) 62.5cps (at all cpi in near letter quality)
  • Printhead:Oki's unique, high durability 9 pin print head

Reliability

  • Reliability:Print head life: 200M characters MTBF: 20,000 hours
  • MTBF:20,000 hours
  • Ribbon life:3M characters
  • Print head life:200M characters

Interfaces and Emulations

  • Optional interface(s):Serial RS 232C, RS 422, Current Loop
  • Interface:Centronics parallel, USB
  • Emulation:Epson LX, IBM Graphics, Oki Microline









The compact ML280 Elite offers great print quality at a low cost. High reliability and a small device footprint make it ideally suited for front and back office applications including multipart forms, logs and labels.
