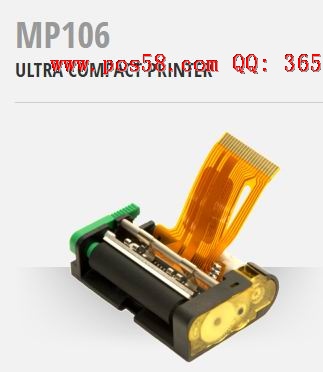

38mm Thermal Printer Mechanism APS MP106
MP106
ULTRA COMPACT PRINTER
FEATURES
- Low noise technology
- High speed (up to 80 mm/s)
- Low consumption
- Ergonomic design (centered paper path)
- High reliability in an extremely small size
- Single flex-cable
- 1 inch (38mm) paper width / 32 mm printing width
- Ultra compact design
APPLICATIONS
- Calculators
- Data terminal devices
- EFT POS
- Hand held terminals
- Measuring instruments and analysers
- Medical equipment
- Portable printers and terminals
- Taxi meters
SPECIFICATIONS
- Max. paper thickness (um):
- 80
- Printing speed (mm/s):
- 80
- Paper detection:
- Opto sensor
- Temperature detection:
- Thermistor
- Voltage range (Logic | Head):
- 5 ± 5% V | 4.2-8.5 V
- Dot resistance (Ohm):
- 140 ± 3%
- Energy per dot (mJ):
- 0.31
- Stepper motor (Ohm):
- Bipolar (20)
- Life/reliability:
- 50 km/ 100 M pulses
- Operating temperature (°C):
- -5 to +50
- Operating humidity (%):
- 20 to 85 non cond.
- Dimensions (WxDxH mm):
- 32x48x13.8
