Features:
- Wireless Bluetooth technology,for android based mobile phone or tablets, MAC and IOS.
- It applies mobile products to supporting the use, and suited to outdoor work environments.
- The feature has small size, light weight, reliable performance,simple to connect, easy to use.
Applications:
- The mobile police system
- The tobacco distribution system
- The utility meter reading system
- The mobile office / mobile logistics systems
- The portable instrumentation
- The testing equipment, ancillary equipment.
- Low operating costs (no ribbons, ink cartridges)
Android operation system test (APP: Printer-X)
- In App Store search and Download Printer-X software
- Open android mobile Bluetooth, then open Printer-X
- In Printer-X will search BlueTooth Printer.
- Connect success, put content into Edit Box to test printing.
- Test: bold, underline, double width, double height, (minimum font)
- Printing
- Printer-X is workable for iPhone
- Print demo: ESC POS Print Service(android)
Specifications:

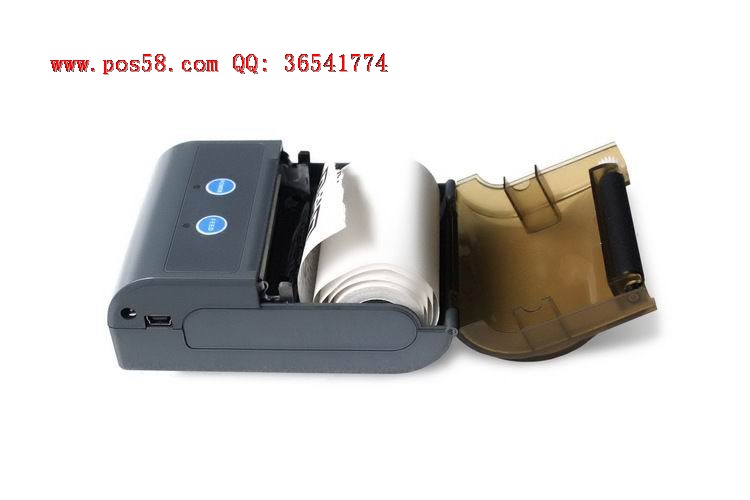

- Product Name: Thermal Bluetooth Receipt Printer
- Printing Method: Thermal line printing
- Print speed: 90mm/sec
- Reliability TPH Life: 100km
- Resolution: 203DPI (8dot/mm)
- Printing Width: 48mm (384dot)
- Paper Width: 58±01mm
- Roll Diameter: φ≤40mm
- Paper Type: Thermal Paper
- Power supply (optional): rechargeable lithium batteries
- Battery: Lithium: 7.4VDC/1500mA,
- Charging mode: DC 9V/1.5A
- Support the battery display function
- Print parameters: support to download the Logo trademark
- Weight: about 400g (including accessories: lithium-ion batteries, cable, test paper)
- Size: 103.5*78*45.5mm
- Working Temperature: -10ï½50â
- Humidity: 10ï½90%
Character size:
- The 384 - point/line
- The Font A: 12 * 24 points, (wide) 1.5 * 1.5 (high) mm
- The Font B: 9 *17points, 1.1(wide) * 2.1 (high) mm
- Jane/traditional: 24 * 24 points, (wide) 3.0 * 3.0 (high) mm
- Printing Chinese character:
- Chinese: simplified Chinese 24x24 point.
- support 18030 font library,
- support Taiwan and HK traditional(complex font)
- ANK: ANK characters
Extended character table:
- OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/IranII
/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai
- Emulation: ESC/POS/STAR command
- Interface: standard RS232/USB, Bluetooth 2.0/SPP agreement or infrared/IRCOMM agreement (optional).
Package included:
- 1X 58mm Portable Receipt Printer
- 1X Power Adaptor
- 1x Battery
- 1X CD for Driver
- 1X USB cable
- 1X User Manual
|
