Quick Details

• Place of Origin: South Korea
• Brand Name: Yokogawa
• Model Number: US1000-21/A10
• Limit Control Setpoint: 1
• Control type: high limit or low limit
• Limit action: latching
• Ethernet: Standard : IEEE802.3 (10BASE-T, 100BASE-TX)
• Max segment length: 100m
• Max. Connecting Configuration: Cascade Max. 4 level (10BASE-T), Max. 2 level (100BASE-TX)
• PV display: 5-digit, 14-segment active color LCD (white/red).
• Data display: 5-digit, 11-segment color LCD (orange)
• Ambient temperature: -10 to 50°C (-10 to 40°C for side-by-side mounting of controllers)
• Ambient humidity: 20 to 90% RH (no condensation)

Packaging & Delivery

Packaging Details:	Carton, or depen on the clients' request
Delivery Detail:	8 weeks

Specifications

Yokogawa Digital Indicating Controller US1000
has clear bar displays for PV, SV, and MV, and a wealth of control and computa

We can offer you the whole range of Yokogawa products.

Guangzhou Taike Electron Technology Co., Ltd is a leading supplier of dealing with Yokogawa original products for many years, with competitive price, enjoying a good reputation among our clients in Automation and Test & Measuring instruments area.



Supply Range:



Besides, we also supply instruments of Pepperl+Fuchs (P+F), MTL etc.



-----------------

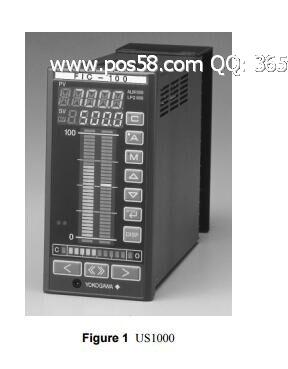

US1000 Digital Indicating Controller

Yokogawa Digital Indicating Controller US1000





General



The US1000 Digital Indicating Controller has clear bar displays for PV, SV, and MV, and a wealth of control and computation functions. All kinds of operations and setting changes can be easily carried out using the front panel keys.  Communication functions such as Modbus protocol support, are provided in order to communicate with the other product models.



Features

• 30-segment LED PV bar graph

• Comes standard with a universal input that can directly accept sensor input

• Powerful dual-loop control function

• Custom computation function that covers a wide range of applications and is created by users combining controls and computations. (This is easily created using the LL1200 PC-Based Custom Computation Building Tool.)

• Half the size of earlier instruments—being only 150 mm long.



Models and Suffix Codes

Model	Suffix Codes	Option Codes	Description	Analog input		Analog output				Contact
				Universal	Voltage	LPS*1	Current	Voltage	Relay	Input	Output
US1000	-00		Basic type	1	1	1	1	1	0	2	3
	-11		Enhanced type (with custom computation)	2	1	2	2	1	2	7	7
	-21		Position proportional type (with custom computation)	2	1	2	1	1	2*2	7	7
		/A10	RS-485 communication



*1 : Loop power supply for transmitter

*2 : The two contact points in the US1000-21 relay item are the relay output and the feedback resistance input.
