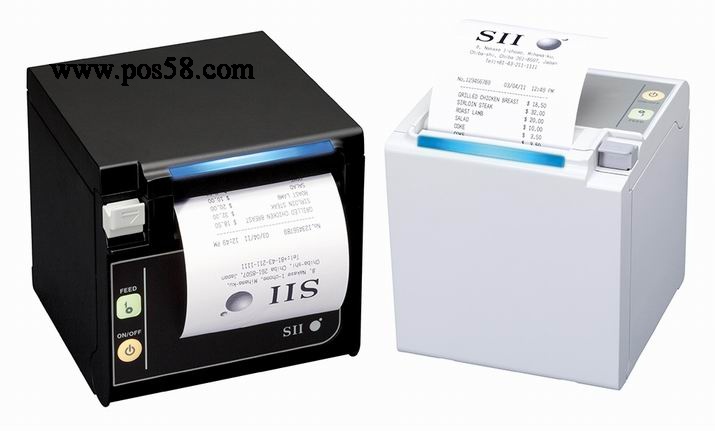

POS Printer POS
POS Printer
RP-D10 series
- Dual purpose : Paper top-exit and front-exit(IPx1)
- Compact cube : 129mm x 129mm x 129mm
- Max printing speed : 200mm/sec
- Energy saving : ENERGY STAR® compliant
- Paper saving : Receipt top space = 2mm(min.)
- Wide variety of driver and utility software suite
| Model |
RP-D10 |
| *1 Use recommended thermal papers. *2 Vary according to thermal paper. *3 Excluding protrusion. *4 Please see "Associated software tool" for details. |
| Printing |
Method |
Thermal line dot printing |
| Number of dots/line |
576 |
| Resolution (dots/mm) |
203 (8 dots / mm) |
| Paper width (mm) |
58 / 80 |
| Printing width (mm) |
54 / 72 |
| Speed (mm/sec) max |
200 |
| Outside diameter of paper roll (mm) max |
ф 83 |
| Inside diameter of paper roll (mm) |
ф 12 |
| Character matrix (H×W dots) |
24 × 12, 24 × 24, 16 × 8, 16 × 16 |
| Character dimensions (H×W mm) |
3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0 |
| Type of Paper |
Roll paper |
| Character type |
Code page: 14pages, Optional font, Downloaded character,
User-defined character, JIS 1 & 2 level kanji, Special character |
| Bar code |
UPC-A/E, JAN (EAN) 8/13, ITF, CODE39, CODABAR,
CODE93, CODE128, PDF417, QR Code |
| Power supply (V) |
Specified AC adapter, External power (DC24V +/- 5%) |
| Communication interface |
USB, Serial, Powered USB, Ethernet, Bluetooth® |
| Input buffer |
4k bytes |
| Command |
ESC/POS™ conformity, Markup Language |
| Cutting |
Methods |
Slide type |
| Cutting type |
Full cut, Partial cut (Leave center point) |
| Operating temperature (˚C) |
5 to 45 |
| Service life (km) |
Abrasion resistance (km) |
100*1 |
| Paper cutting (cut) |
1,500,000*2 |
| Dimensions (W×D×H mm) |
129.0 × 129.0 × 129.0*3 |
| Mass (g) |
Approx. 850 |
| Standard |
FCC, CE, VCCI, etc. |
| Option |
Wall mounting kit, Back plate |
| Cash drawer |
2 drivers (24V / 1A) |
| Body color |
2 colors: White / Black |
| Software*4 |
Printer driver, OPOS, POS for .NET, Linux®,
Android™ (SDK), iOS (SDK) |
PAGE TOP
POS Printer
RP-E10/RP-D10 Series
- Receipt, slip, ticket and more. RP-E10/RP-D10 series is ideal printer for many applications.
| Supermarket |
Apparel store |
Kitchen |
 |
 |
 |
 |
 |
 |
High performance printing to
speed up checkout process,
and improve business efficiency. |
Compact design to fits into any tiny space, even under the counter. |
By the water proof design, RP-E10 / RP-D10 performs as a kitchen printer. |
iOS/Android™/Windows® & Bluetooth®
With the stylish and compact design, RP series performs a key role in smart device POS system. The Bluetooth® interface and software SDK for Android™, Windows® and iOS devices provide a best solution for your system.
"Made for iPod", "Made for iPhone", "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone and iPad respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Approval Process for SII MFi printer on APP store »
OPTION
Wall mount kit
The smallest printer fits any place, even on the wall.
Back plate (Black / White)
Cables on back side can be neatly covered by this option.
|
