PANASONIC EPL-1700
Themal printers - 60, 80 and 112mm width
|
|
|
|
|

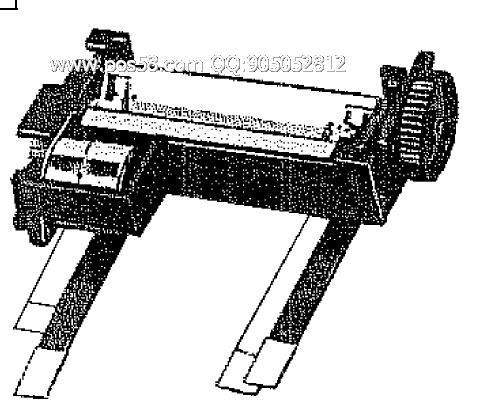

The thermal printers of the series EPL-1700 use a fixed head assuring a great reliability and a very fast functioning. Their compactness allows to integrate them easily into all the systems. A choice of four different qualities of paper is possible.
The printing speed and the silence of functioning make them the ideal instrument for point of sale, ticket machines, cash registers and medical applications. The dots density (203dpi) authorizes the printing of graphs, curves and bar codes of excellent quality. The specific controller ITP-1700 can pilot thermal printers modules EPL-1701 , EPL-1702 and EPL-1703.
|
|
| Part Number |
EPL-1701
|
EPL-1702
|
EPL-1703
|
| No. of dots |
432
|
576
|
864
|
| Resolution |
8 dots/mm
|
8 dots/mm
|
8 dots/mm
|
| Paper width (mm) |
60
|
80
|
112
|
| Print width (mm) |
54
|
72
|
108
|
| Print speed (max) |
60 mm/s
|
60 mm/s
|
45 mm/s
|
Drivers (288 dots unit max.)
Strobes (144 dots unit) |
3
3
|
4
4
|
6
4
|
| Power supply Head |
24V DC ± 5%
|
24V DC ± 5%
|
24V DC ± 5%
|
| Power supply Logic |
5V ± 5%
|
5V ± 5%
|
5V ± 5%
|
| Paper loading |
Automatic
|
Automatic
|
Automatic
|
Columns
font 16 x 24
font 10 x 24 |
27 columns
43 columns
|
36 columns
57 columns
|
54 columns
86 columns
|
| Current Consumption |
5,0 A max
1,5 A average
|
5,0 A max
1,5 A average
|
5,0 A max
1,5 A average
|
| Features |
Paper end detection,
Head open,
Temperature sensor
|
Paper end detection,
Head open,
Temperature sensor
|
Paper end detection,
Head open,
Temperature sensor
|
| Reliability/life |
50km
|
50km
|
50km
|
| Dimensions (mm) |
81 x 52 x 20
|
101 x 52 x 20
|
147 x 52 x 20
|
| Weight |
90 ± 5 g
|
97 ± 5 g
|
135 ± 5 g
|
| Data Sheet |
 (fr) |
| Control board |
ITP-1701
|
ITP-1702
|
ITP-1703
|
| Communication |
Serial TTL,
RS232C,
Centronics
|
Serial TTL,
RS232C,
Centronics
|
Serial TTL,
RS232C,
Centronics
|
| Case |
MP-4117
|
No
|
MP-4137
|
|
|
|
Complete printers
|
|
MEPL-7400 for EPL-1701
- Paper width 60mm
- Dimensions (length x width) : 121,5 x 122,5 mm
|
MEPL-7500 for EPL-1703
- Paper width 112mm
- Dimensions (length x width) : 177 x 129 mm
|
|
|
|
|
| Interface ITP-1700 |
| |
|
 |
| REFERENCE |
|
|
|
ITP-1700 -
|
X
|
X
|
|
Interface
|
|
|
|
Serial TTL: T
Serial RS232C/V24 : V
Parallel : P
|
|
Option
|
|
Real time clock:
|
|
|
|
