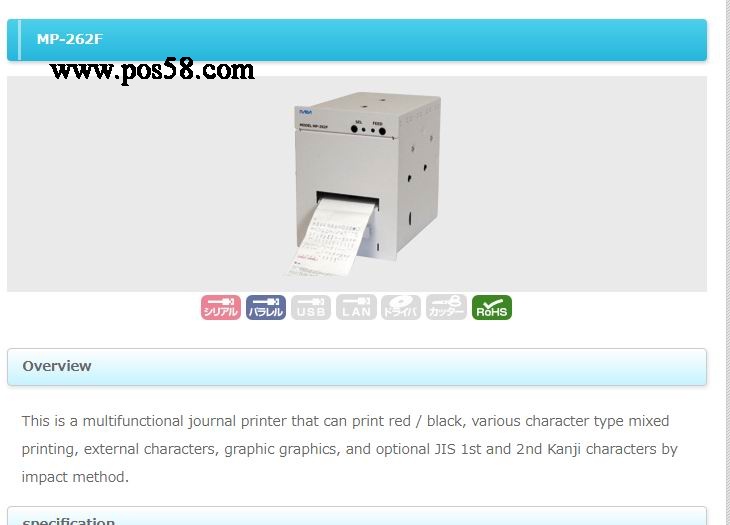

This is a multifunctional journal printer that can print red / black, various character type mixed printing, external characters, graphic graphics, and optional JIS 1st and 2nd Kanji characters by impact method.
specification
Model
MP-262F
interface
Serial (RS-232C)
parallel (Centronics compliant)
Printing method
Serial impact dot matrix
Total number of dots
210 dots / line
Printing speed
Approximately 2 lines / second (for 5 x 7 fonts)
Paper feed speed
Approximately 9 lines / second (10 dots / line)
Character size and
number of printed digits
font
WxH (dot)
WxH (mm)
Number of digits
ANK
5x7
1.6x2.8
35
ANK
7x7
1.3x2.8
42
ANK
8x16
2.5x5.8
26
Kanji (full-width)
16x16
5.0x5.6
13
Kanji (reduced)
16x16
2.5x5.6
26
Recording paper
Roll paper (plain paper)
Folding paper (plain paper)
Compatible recording paper
NR-760
NF-760
paper width
76mm
Roll paper outer diameter
/ folding length
Φ60mm
5 inches
length
35m
Core inner diameter
φ12mm
Winding core outer diameter
φ18mm
Paper thickness
0.06-0.085mm
Paper thickness
52.3 ～ 64g / ㎡
mass
150g
Inking
Ribbon cassette method (red / black 2 colors)
Applicable ink ribbon
IR-31RB
lifespan
Red / Black 60 / 900,000 characters (25 ℃ continuous printing)
Desktop dot impact printer MPT-111ES
, 3P copy paper can be printed
, printing speed: 3.6 lines / sec maximum
, paper width: 76 mm (S23), 89 mm (S)
, power supply: free
Panel built-in dot impact printer MP-111ES
, 3P copy paper can beprinted.Printing
speed:Approx.3.6lines /sec.Paper
width: 76 mm (S-23), 89 mm (S)
Power supply: 100 VAC
Built-in dot impact printer with auto cutter MPS-111ECS
, 3P copy paper printing With cutter
, printing speed: approx. 3.6 lines / sec
, paper width: 76 mm (S-23), 89 mm (S)
, power supply: 24 VDC
Built-in dot impact printer MPS-111ES
, 3P copy paper can beprinted.Printing
speed:approx.3.6lines /sec.Paper
width: 76 mm (S-23), 89 mm (S)
Power supply: 100 VAC
