产品展示

LTPZ245M-C384-E.pdf LTPZ245N-C384-E.pdf

产品名称：LTPZ245M-C384-E.pdf LTPZ245N-C384-E.pdf

产品编号：LTPZ245M-C384-E.pdf LTPZ245N-C384-E.pdf

详细说明：

Easy Paper Operation Mechanism Low Voltage

Max. printing speed: 75mm/sec
Compact and light-weight
Operating temperature: -20°C to 50°C

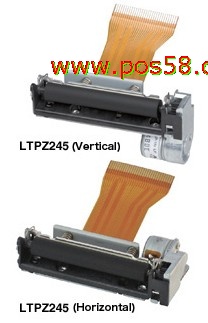

Model		LTPZ245 (Horizontal)	LTPZ245 (Vertical)
Printing	Method	Thermal line dot printing
	Number of dots/line	384
	Resolution(dots/mm)	8
	Paper width(mm)	58
	Printing width(mm)	48
	Speed(mm/sec)max	75
	Paper path	Curved
Detection	Head temperature	By thermistor
Detection	Out of Paper	By photo interrupter
Power supply(V)	Operation voltage(Vdd)	3.0 to 3.6 / 4.75 to 5.25
Power supply(V)	Operation voltage(Vp)	4.2 to 9.5
Peak current(A)	Head	3.60(9.5V / 64 dots on)
Peak current(A)	Motor	0.6
Service life	Pulse activation(pulse)	100million
Service life	Abrasion resistance(km)	50^*1
Operating temperature (°C)		-20 to 50
Dimensions(W x D x H mm)		70.1 x 32.7 x 15.3 ^*2	70.1 x 21.8 x 31.0 ^*2
Mass(g)		Approx.44	Approx.46
1 Use recommended thermal papers 2 Excluding protrusion
