LTPG247B-432-E |
|
|
| 产品名称：LTPG247B-432-E |
| 产品编号：LTPG247B-432-E |
| 详细说明： |
|
|

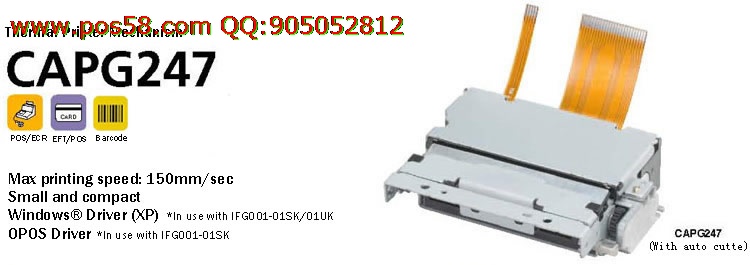

CAPG247 |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
432
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
58  |
| Printing width(mm) |
54
|
| Speed(mm/sec) max |
150
|
| Paper path |
Curved
|
| Detection |
Head temperature |
By thermistor
|
| Platen position detection |
By mechanical switch
|
| Out of paper detection |
By photo interrupter
|
| Cutter home position |
By mechanical switch
|
| Power supply(V) |
Operation voltage(Vdd) |
3.14 to 3.46/4.75 to 5.25
|
| Operation voltage(Vp) |
21.6 to 26.4
|
| Peak current(A) |
Head |
5.2V (26.4V/288 dots)
|
| Motor |
0.4/0.37 *1
|
| Cutter |
0.5
|
| Cutting |
Method |
Slide type
|
| Paper thickness (µm) |
54 to 80 *2
|
| Cutting type |
Full cut/ Partial cut (Leave center point)
|
| Operating time (sec/cycle) max |
0.5
|
| Cutting pitch(mm)/min |
10
|
| Cut frequency (cut/min) max |
30
|
| Service life |
Pulse activation(pulse) |
100 million
|
| Abrasion resistance(km) |
100*2
|
| Life (cut) |
1,000,000
|
| Operating temperature(°C) |
0 to 50
|
| Dimensions(WxHxD mm) |
80.5 x 65.0 x 22.2 *3
|
| Mass(g) |
Approx.180
|
|
*1 2-2 phase and W1-2 excitation method *2 Use recommended thermal papers *3 Excluding protrusion
Windows ® is the registered trademark of Microsoft Corporation (USA).
|
|
|
Interface
|
|
Model
|
IFG001-01SK
|
IFG001-01UK |
| CPU |
PTG00P01
|
| Thermal printer |
CAPG247
|
| Operating Voltage(V) |
Vp:21.6 to 26.4
|
| Character matrix(HxW dots) |
16 dots characters : 16 x 8, 16 x 16
|
|
24 dots characters : 24 x 12, 24 x 24
|
| Character type |
Optional font |
Yes
|
Yes
|
| Downloaded character |
Yes
|
Yes
|
| User-defined character |
Yes
|
Yes
|
| Extend graphics character set |
Yes
|
Yes
|
| Katakana character set |
|
Yes
|
| JIS 1&2 level kanji |
|
Yes
|
| Communication interface |
Serial (RS-232C)
|
USB
|
| Dimensions(WxHxD mm) |
75.0 x 75.0 x 16.0
|
|
CPU
|
|
Model
|
PTG00P01 |
| Thermal printer |
CAPG247
|
| Package form |
128pin QFP
|
| Operating voltage(V) |
Vp21.6 to 26.4, Vcc:3.0 to 3.6
|
| Operating frequency(MHz) |
18.43+/-0.5%
|
| Configuration |
C-MOS LSI
|
| Communication interface |
Parallel, Serial , USB
|
| Character type |
Extended graphics character set , Other characters are available with CGs*4 or external ROM |
| Character matrix (H x W dots) |
16 dots characters: 16*8, 16*16
|
|
24 dots characters: 24*12, 24*24
|
| Dimensions(WxHxD mm) |
22.0 x 16.0 x 3.15
|
|
*4 CG ROM:Japanese, Korean
|
|
 |
