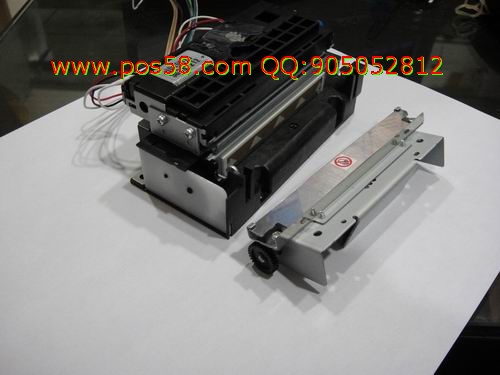

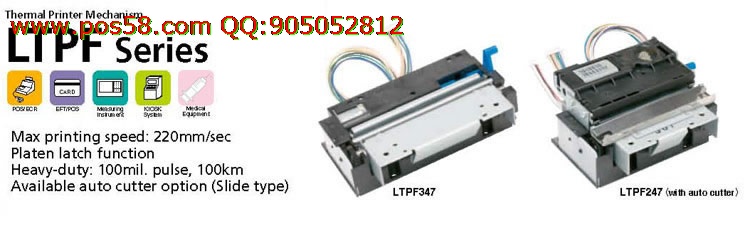

LTPF347F-C576-E /LTPF247F/LTPF247E/LTPF347E 精工 热敏 打印头
|
Model
|
LTPF247F |
LTPF247E |
LTPF347F |
LTPF347E |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
432
|
576
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
58  |
80 |
| Printing width(mm) |
54
|
72
|
| Speed(mm/sec) max |
220
|
100
|
220
|
100
|
| Paper path |
Curved
|
| Detection |
Head temperature |
By thermistor
|
| Platen position detection |
By mechanical switch
|
| Out of paper detection |
By photo interrupter
|
| Power Supply(V) |
Operation voltage(Vdd) |
4.75 to 5.25
|
| Operation voltage(Vp) |
21.6 to 26.4
|
| Peak current(A) |
Head |
5.4(26.4V/128dots) |
2.6(26.4V/144dots) |
5.4(26.4V/128dots) |
2.6(26.4V/144dots) |
| Motor |
0.46
|
0.55
|
0.46
|
0.55
|
| Service Life |
Pulse activation(pulse) |
100million
|
| Abrasion resistance(km) |
100*1
|
| Operating temperature(°C) |
0 to 50
|
| Dimensions(WxHxD mm) |
86.2 x 54.0 x 25.8*2
|
110.2 x 54.0 x 25.8*2
|
| Mass(g) |
Approx.150
|
Approx.175
|
|
*1 Use recommended thermal papers *2Excluding protrusion
Windows ® is the registered trademark of Microsoft Corporation (USA).
|
|
Interface
|
|
Model
|
IFF001-01B
|
IFF001-01BK |
IFF201-01TK |
| CPU |
PTF00P01
|
IFF201 only
|
| Thermal printer |
LTPF247F,LTPF347F
|
LTPF247E,LTPF347E
|
| Operating voltage(V) |
Vp:21.6 to 26.4, Vcc:4.5 to 5.5
|
Vp:21.6 to 26.4
|
| Character matrix(HxW dots) |
16 dots characters : 16 x 8, 16 x 16
24 dots characters : 24 x 12, 24 x 24
|
| Character type |
Optional font |
Yes
|
Yes
|
Yes
|
| Downloaded character |
Yes
|
Yes
|
Yes
|
| User-defined character |
Yes
|
Yes
|
Yes
|
| Extend graphics character set |
Yes
|
Yes
|
Yes
|
| Katakana character set |
No
|
Yes
|
Yes
|
| JIS 1&2 level kanji |
No
|
Yes
|
Yes
|
| Communication interface |
Parallel, Serial(C-MOS)
|
Parallel, Serial(RS-232C), USB
|
| Dimensions(WxHxD mm) |
80.0 x 100.0 x 19.6
|
87.0x72.0x12.0
|
|
CPU
|
|
Model
|
PTF00P01
|
PTF20P01 |
| Thermal printer |
LTPF247F,LTPF347F
|
LTPF247E,LTPF347E
|
| Package form |
144pin QFP
|
128pin QFP
|
| Operating voltage(V) |
Vp:21.6 to 26.4, Vcc:4.5 to 5.5
|
Vp:21.6 to 26.4, Vcc:4.75 to 5.25
|
| Operating frequency(MHz) |
27+/-0.5%
|
18.43+/-0.5%
|
| Configuration |
C-MOS LSI
|
| Communication interface |
Parallel, Serial
|
| Character type |
Extended graphics character set
Other characters are available with CGs*3 or external ROM
|
| Character matrix(H x W dots) |
16dots characters : 16 x 8, 16 x 16
24dots characters : 24 x 12, 24 x 24
|
| Dimensions(WxHxD mm) |
22.0 x 22.0 x 3.05
|
22.0 x 16.0 x 3.15
|
|
*3 CG ROM: Japanese, Korean
|
| Auto Cutter |
|
Model
|
ACUF224J
|
ACUF224H |
ACUF324J |
ACUF324H |
|
Thermal Printer
|
LTPF247
|
LTPF347
|
| Cutting |
Method |
Slide type
|
| Paper width(mm) |
58 |
80 |
| Paper thickness(µm) |
60 to 80 *4
|
| Cutting type |
Partial cut
(Leave center point)
|
Full cut
|
Partial cut
(Leave center point)
|
Full cut
|
| Operating time (sec/cycle) max |
0.6 (24V on)
|
| Cutting pitch(mm) min |
10
|
| Cut frequency (cut/min) max |
30
|
| Operating Voltage(V) |
Motor |
21.6 to 26.4
|
| Detector(control switch) |
4.5 to 5.5
|
| Starting Current (A) |
1.2
|
| Life(cut) |
1,000,000 *5
|
| Dimensions(WxHxD mm) |
80.0 x 64.0 x 19.0
|
102.0 x 64.0 x 19.0
|
| Mass(g) |
Approx.130
|
Approx.150
|
|
*4 Use recommended thermal papers *5 Depending upon specified conditions.
|
|
Winder Unit
|
|
|
WU282 |
| Thermal printer |
LTPF247F
|
| Paper width(mm) |
58 |
| Paper thickness(µm) |
70 to 80
|
| Outside diameter of paper roll(mm) max |
Ø83
|
| Inside diameter of paper roll(mm) min |
Ø20
|
| Operating voltage(V) |
21.6 to 26.4
|
| Speed(mm/s) max |
220
|
| Life (operationg hours) |
160
|
| Dimensions(WxHxD mm) |
87.8 x 92.0 x 97.6
|
| Mass(g) |
Approx.136
|
|
 |
