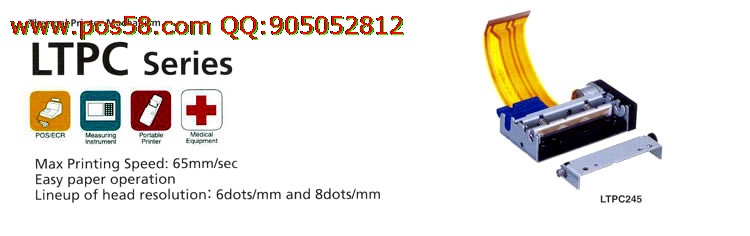

LTPC235A-C288-E |
|
|
| 产品名称：LTPC235A-C288-E |
| 产品编号：LTPC235A-C288-E |
| 详细说明： |
|
Model
|
LTPC235 |
LTPC245 |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
288
|
384
|
| Resolution(dots/mm) |
6
|
8
|
| Paper width(mm) |
58  |
| Printing width(mm) |
48
|
| Speed(mm/sec) max |
60
|
65
|
| Paper path |
Curved
|
| Detection |
Head temperature |
By thermistor
|
| Platen position detection |
By mechanical switch
|
| Out of paper detection |
By photo interrupter
|
| Power Supply(V) |
Operation voltage(Vdd) |
4.75 to 5.25
|
| Operation voltage(Vp) |
5.0 to 8.0
|
| Peak current(A) |
Head |
4.6(8V/144dots on)
|
4.3(8V/96dots on)
|
| Motor |
0.82(8V)
|
| Service Life |
Pulse activation(pulse) |
50 million
|
100 million
|
| Abrasion resistance(km) |
50
|
| Operating temperature(°C) |
0 to 50
|
| Dimensions(WxHxD mm) |
71.1 x 88.6 x 29.0 *1
|
| Mass(g) |
Approx.220
|
*1 Excluding protrusion
|
CPU
|
|
|
PT800P01 |
|
Thermal printer
|
LTPC235 |
LTPC245 |
| Package form |
80pin QFP
|
| Operating Voltage(V) |
Vp:5.0 to 8.0, Vcc:4.5 to 5.5
|
| Operating frequency(MHz) |
5+0.5%
|
| Configuration |
C-MOS LSI
|
| Communication interface |
Parallel, Serial
|
| Character type |
Extended graphics character set
Other characters are available with CGs*1 or external ROM |
| Character matrix(HxW dots) |
16 dots characters: 16*8, 16*16
|
|
24 dots characters: 24*12, 24*24
|
| Dimensions(WxHxD mm) |
17.2 x 17.2 x 1.7
|
*1 CG ROM: Japanese, Korean
|
|
 |
