| 型号 |
LTP3245A/B |
LTP3245F/G |
LTP3345 |
LTP3445 |
| 打印头类型 |
热敏行点打印
|
| 解像度(点阵/毫米) |
8
|
| 行数(点阵/行) |
384
|
576
|
832
|
| 速度(毫米/秒) |
22.5
|
54.5
|
45
|
56.25
|
| 打印宽度/纸宽(毫米) |
48/58
|
72/80
|
104/112
|
| 打印头寿命 |
脉冲个数 |
5x107
|
| 打印纸张(公里) |
30
|
50
|
| 检测方式 |
打印头热度 |
热感应器 |
| 压纸轴离位检测 |
机械开关
|
| 缺纸检测 |
光感应器
|
| 操作电压 (V) |
逻辑电路 |
4.2 - 5.5
|
4.5 - 5.5
|
| 打印头 |
4.2 - 6.0
|
4.2 - 7.0
|
4.2 - 7.0
|
4.2 - 8.5
|
| 整体尺寸(长x宽x高 毫米) |
76.3x50x20
|
76x54x21
|
97x57x21
|
129x51x21
|
| 重量(克) |
约80
|
约105
|
约115
|
约135
|
| 中央处理器 |
|
| 型号 |
PT300P01-02 |
| 打印机 |
LTP3245A/B专用
|
| 封装 |
64 pin
|
| 操作电压(V) |
5 + 0.5
|
| 操作频率(MHz) |
14.7456 + 0.5%
|
| 结构 |
C-MOS LSI
|
| 行距 |
16点 行距 (可用指令更改行距)
|
| 字距 |
4点 字距 (可用指令更改字距)
|
| 输入方法 |
8-bit 并口 (Centronics), asynchronous串口
|
| 字库类形 |
附加图案字库
|
| 尺寸(宽x深x高 毫米) |
23.6 X 17.6 X 2.7
|

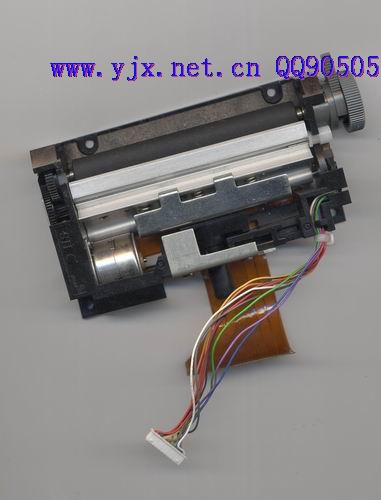

LTP3000 Series
The LTP3000 Series thermal line printers combine a compact, lightweight battery-powered design with an array of advanced features. This series is the ideal thermal printing solution for any application where small size, speed, versatility and low-power consumption are critical. Aside from being efficient, economical and dependable, the LTP3000 Series printers feature 5 volt operation and a power-saving design that supports virtually any application requiring portable, battery-powered thermal printing.
Features
- High speed (56.25mm/sec. attainable with LTP3445)
- High resolution printing (8 dots/mm)
- Low voltage operation
- Accepts two-ply and label media
- Head-up and paper-out sensors
- High reliability
- Quiet operation
|
