UPDATED May 2013
Applications: Kiosk, Medical, ATM, Coupons, HandHeld, Bar Codes, POS, Ticketing, Gaming, Labels, Instruments, Tickets, Mobile

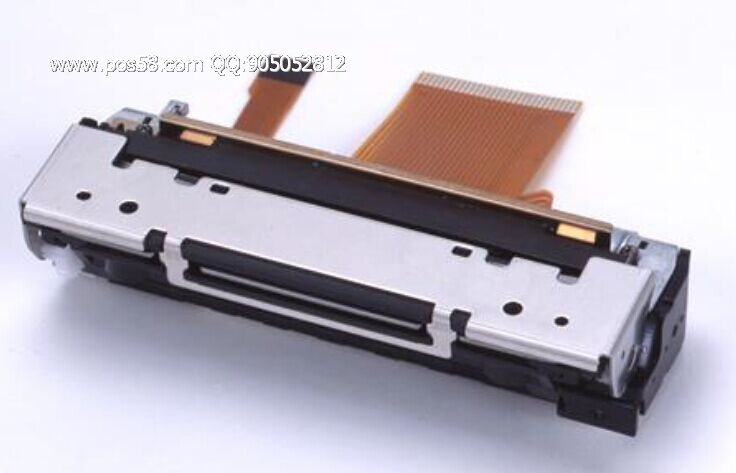

FIXED HEAD THERMAL MECHANISMS and INTERFACE CONTROL BOARDS - for Embedded Solutions
Voltage
24 or 5 Width
Paper
Path
Auto
Cutter Thin Medium Thick
24 2" Front No FTP-627MCL053 X 100 Diecast FTP-627DCL218 FTP-627DSL238
24 2" Bottom No FTP-627MCL054 X 100 Diecast FTP-627DCL218 FTP-627DSL238
24 2" Top No FTP-627MCL103 X 100 Diecast FTP-627DCL218R FTP-627DSL238R
24 2" Top Yes FTP-627MCL401 X 100 Diecast FTP-627DSL291R FTP-627DSL291R FTP-627DSL356R FTP-627DSL354R
24 2" Top Yes FTP-627MCL411 X 200 Diecast FTP-627DSL405R FTP-627DSL403R
24 2" Top Yes FTP-627MCL601 X 150 Diecast FTP-627DSL366R FTP-627DSL364R
24 3" Top No FTP-637MCL103 X 100 Diecast FTP-637DCL218R FTP-637DSL238R
24 3" Top Yes FTP-637MCL401 X 100 Diecast FTP-637DSL291R FTP-637DSL291R FTP-627DSL376R FTP-627DSL374R
24 3" Top Yes FTP-637MCL411 X 170 Diecast FTP-627DSL415R FTP-627DSL413R
24 3" Top Yes FTP-637MCL601 X 150 Diecast FTP-627DSL386R FTP-627DSL384R
24 2" Bottom No FTP-629MCL054R X X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL304R FTP-629DSL304R
24 2" Front Yes FTP-629MCL353R X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL301R FTP-629DSL301R
24 2" Bottom Yes FTP-629MCL354R X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL301R FTP-629DSL301R
24 2" Top No FTP-629MCL103R X X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL304R FTP-629DSL304R
24 2" Top Yes FTP-629MCL383R X X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL301R FTP-629DSL301R
24 3" Bottom No FTP-639MCL054R X X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL304R FTP-629DSL304R
24 3" Front Yes FTP-639MCL353R X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL301R FTP-629DSL301R
24 3" Bottom Yes FTP-639MCL354R X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL301R FTP-629DSL301R
24 3" Top No FTP-639MCL103R X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL304R FTP-629DSL304R
24 3" Top Yes FTP-639MCL383R X 200 Diecast FTP-629DCL014R FTP-629DSL034R FTP-629DSL301R FTP-629DSL301R
24 3" Top No FTP-63AMCL011 X 250 Diecast FTP-62ADSL013 FTP-62ADSL003
24 3" Top No FTP-63AMCL111 X 250 Diecast FTP-62ADSL013 FTP-62ADSL003
24 3" Top Yes FTP-63AMCL311 X 250 Diecast FTP-62ADSL012 FTP-62ADSL002
24 3" Top Yes FTP-63AMCL411 X 250 Diecast FTP-62ADSL011 FTP-62ADSL001
5 2" Front No FTP-628MCL053 X 60 Diecast FTP-628DCL300R FTP-628DSL305R FTP-628DSL603R FTP-628DSL602R
5 2" Bottom No FTP-628MCL054 X 60 Diecast FTP-628DCL300R FTP-628DSL305R FTP-628DSL603R FTP-628DSL602R
5 2" Top No FTP-628MCL103 X 60 Diecast FTP-628DCL300R FTP-628DSL305R FTP-628DSL603R FTP-628DSL602R
5 2" Top No FTP-628MCL123 X 60 Diecast FTP-628DCL300R FTP-628DSL305R FTP-628DSL603R FTP-628DSL602R
5 2" Top No FTP-628MCL203 X 60 Diecast FTP-628DCL300R FTP-628DSL305R FTP-628DSL603R FTP-628DSL602R
5 2" Top Yes FTP-628MCL401 X 60 Diecast FTP-628DSL491R FTP-628DSL491R
6 2" Top Yes FTP-628MCL751 X 60 Diecast FTP-628DSL643R FTP-628DSL642R
5 3" Top No FTP-638MCL103 X 60 Diecast FTP-628DCL300R FTP-628DSL305R FTP-628DSL603R FTP-628DSL602R
5 3" Top Yes FTP-638MCL401 X 60 Diecast FTP-628DSL491R FTP-628DSL491R
5 4" Top No FTP-648MCL103 X 60 Diecast FTP-628DSL623R FTP-628DSL622R
5 4' Bottom No FTP-648MCL104 X 60 Diecast FTP-628DSL623R FTP-628DSL622R
Applications: Delivery, Hospitality, Kiosk, Medical Receipts and labels
2 and 3 inch PRINTER "INTEGRATED" UNITS - for Kiosk and Portable Wireless Printing
Voltage
Paper
Width
Paper
Path
Auto
Cutter Part Number
Print
Speed
Drop
Height Power Type Package contains
24 2" Front Y FTP-627USL410 100 N/A 24V Mechanism/cutter/board
24 2" Front Y FTP-627USL440 100 N/A 24V Mechanism/cutter/board
24 3 Side Y FTP-639USL102 200 N/A 24V Mechanism/cutter/board
24 3 Side Y FTP-639USL202 200 N/A 24V
Mechanism/cutter/board/
presenter/retractor
3.7 2" Top No FTP-628WSL120#11 40 1.5 meter Li-Ion Battery Battery, A/C adaptor, clip
3.7 2" Top No FTP-628WSL210#20 40 1.5 meter Li-Ion Battery Battery, A/C adaptor
3.7 2" Top No FTP-628WSL211#20 40 1.5 meter Li-Ion Battery Battery, A/C adaptor
3.7 2" Top No FTP-628WSL212#20 40 1.5 meter Li-Ion Battery Battery, A/C adaptor
1) Interface and Power cable assemblies are ordered seperately see website
2) Application notes, specifications, operating manual, software drivers, PC connections, paper roll selection guide see website
3) For tech support please contact you local Fujitsu Sales Rep see website Sales Contacts
Fujitsu Thermal Priner WEBSITE - http://www.fujitsu.com/us/services/edevices/components/thermal-printers/
Bluetooth/USB 2.0
Fujitsu Components America
Paper
***** Interface cable assemblies ordered seperately
Part Number
150mm 60 - 120um Serial/USB
Thermal Printers
Parallel Interface
Board P/N
Paper Type(s)
 Apple iOS Bluetooth, USB
 For Embedded, Kiosk & Mobile Printing
 Paper
Diameter Thickness
Print
Speed
mm/s
150mm 60 - 120um Serial/USB
 Serial (RS232) & IrDA
Interface Controller Type
Serial Interface Board
P/N
High Speed Serial
Interface Board P/N
USB Interface Board
P/N
36mm 60 - 80um
 Body
60mm 60 - 120um
Serial/USB
Serial/USB
USB 2.0
36mm 60 - 80um
36mm 60 - 80um
83mm 60 - 120um
36mm 60 - 80um
Page 1 Fujitsu Components Thermal Printer Selector Matrix May 2013
