FM305-HS LOW CONSUMPTION, ULTRA LIGHT PRINTER |
|
| 产品名称：FM305-HS LOW CONSUMPTION, ULTRA LIGHT PRINTER |
| 产品编号：FM305-HS LOW CONSUMPTION, ULTRA LIGHT PRINTER |
| 详细说明： |

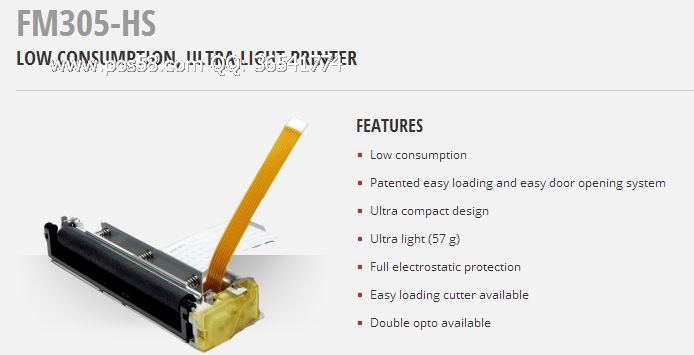

FM305-HS
LOW CONSUMPTION, ULTRA LIGHT PRINTER
FEATURES
- Low consumption
- Patented easy loading and easy door opening system
- Ultra compact design
- Ultra light (57 g)
- Full electrostatic protection
- Easy loading cutter available
- Double opto available
DOWNLOADData sheetTechnical manual
COMPARE WITH OTHER PRODUCTSCOMMERCIAL REQUEST
APPLICATIONS
- Automotive
- Calculators
- Data terminal devices
- EFT POS
- Fiscal printers
- Hand held terminals
- ID automation
- Measuring instruments and analysers
- Medical equipment
- Portable printers and terminals
- Taxi meters
- Ticketing
SPECIFICATIONS
- Paper width (mm):
- 80 +0/-1
- Max. paper thickness (um):
- 80
- Paper loading:
- Easy loading
- Printing speed (mm/s):
- 105
- Paper detection:
- Opto sensor
- Temperature detection:
- Thermistor
- Head-up or Cover-open detection:
- Opto sensor
- Voltage range (Logic | Head):
- 3.0-5.5 V | 4.5-9.5 V
- Dot resistance (Ohm):
- 176 ± 4%
- Energy per dot (mJ):
- 0.18
- Stepper motor (Ohm):
- Bipolar (12)
- Life/reliability:
- 100km/ 100M pulses/ > 1M cuts
- Operating temperature (°C):
- -10 to +50
- Operating humidity (%):
- 10 to 90 non cond.
- Dimensions (WxDxH mm):
- 95x33x15
|
 |
