产品展示

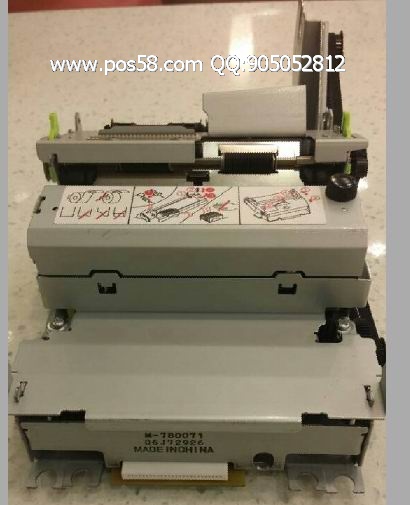

EPSON M-780

EPSON M-780
产品名称:EPSON M-780
产品编号:EPSON M-780
详细说明:
EPSON M-780

Epson M-780

Epson M-780


Impact Mini Printers

PRINTER
PRINTING METHOD Serial impact dot matrix
PRINTING FORMAT
FONT 7 x 9
COLUMN CAPACITY 18 columns x 2, Validation: 42 columns
CHARACTER SIZE 1.3 (W) x 3.1 (H) mm
LINE SPACING 4.7mm
COLUMN SPACING 1.53mm
NUMBER OF TOTAL DOTS Receipt & Journal: 81 dots (162 positions) / line
Validation: 189 dots (378 positions) / line
PRINTING SPEED Approx. 3.3 lines / sec. (at 24 VDC)
PRINTHEAD
VOLTAGE 24 VDC ± 5%10%
PEAK CURRENT Approx. 10.8 A (at 24 VDC)
MOTOR
VOLTAGE 24 VDC ± 5%10%
MEAN CURRENT Approx. 0.25 A (at 24 VDC)
PAPER Roll paper / Validation paper
DIMENSIONS Roll paper: 37.5 ± 0.5mm (W) x dia. 83mm max. / Validation: 134mm or more (W) x 70mm or more(H)
TOTAL THICKNESS Roll paper 0.06 to 0.09mm, Validation: 0.07 to 0.2mm
COPY CAPABILITY Original + two copies (Validation)
RIBBON CASSETTE ERC-37
AMBIENT TEMPERATURE 0 to 50°C
RELIABILITY
PRINTHEAD LIFE 100,000,000 characters
MCBF 3,000,000 lines
PRINTER LIFE 5,000,000 lines
OVERALL DIMENSIONS 135mm (W) x 227.7mm (D) x 150.5mm (H)
WEIGHT Approx. 1.0 kg (1.1 kg with autocutter)
