产品展示

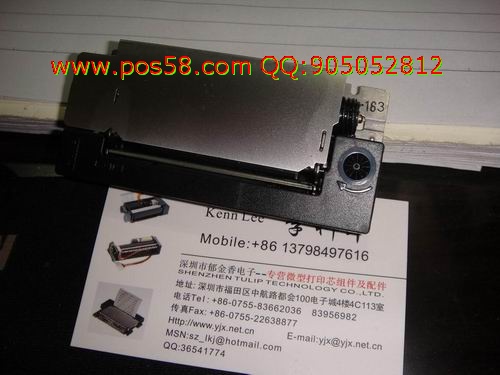

EPSON M-160 EPSON M-160|MP-250-24

EPSON M-160 EPSON M-160|MP-250-24
产品名称:EPSON M-160 EPSON M-160|MP-250-24
产品编号:EPSON M-160
详细说明:
 EPSON M-160
Reference
M-160
M-163
M-164
Megatron Ref.
MP-250-24
MP-250-32
MP-250-40
Technology
Dot-matrix with shuttle head
4 horizontal needles
Number of dots
144
192
240
Resolution
3 dots/mm
4 dots/mm
5 dots/mm
Paper width (mm)
57,5 ± 0,5
printing width (mm)
47,5
48
48
Printing speed (max)
2,5 mm/s
1,6 mm/s
1,3 mm/s
Paper loading
Paper feed
Paper feed
Paper feed
Columns (font 6 x 7)
24
32
40
Needles voltage
4,0 V DC +0,5 -1,0
4,5  V  DC  +0,5  -1,2 4,5  V  DC  +0,5  -1,2
Needles Current
2,5 A max.
3 A max.
3 A max.
Motor voltage
4,5 V DC +0,5 -1,0
4,5  V  DC  +0,5  -0,7 4,5  V  DC  +0,5  -0,7
Motor Current
0,2 A average
Connections
11 solder pads in 2.54 mm pitch
MTBF (lines)
500 000 lines
Dimensions (mm)
91 x 42,6 x 12,8
Weight (g)
75 g
Working Temperature
from 0 to 50°C
Ref. black inking ribbon
MDE-250-N (100 000 characters)
Ref. purple inking ribbon
MDE-250-V (100 000 characters)
Interface
Serial TTL,
RS232C,
Centronics
Serial TTL,
RS232C,
Centronics
Serial TTL,
RS232C,
Centronics
