产品展示

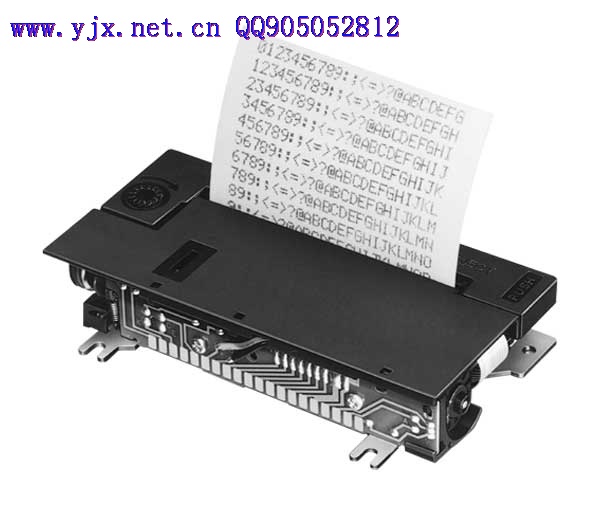

EPSON Impact Mini Printers Shuttle impact dot matrix M-182.pdf printer

产品名称：EPSON Impact Mini Printers Shuttle impact dot matrix M-182.pdf printer

产品编号：M-182.pdf printer

详细说明：

Epson M-182 Series

Impact Mini Printers

Fast and highly durable

Overview Specs Consumables

Printing Format
Printing Method	Shuttle impact dot matrix
Font	5 x 7
Column capacity	M-180: 24 columns M-181: 30 columns M-182: 36 columns M-183: 42 columns M-185: 18 columns M-186: 20 columns
Character size	M-180: 1.7(W) x 2.6(H) mm M-181: 1.4(W) x 2.6(H) mm M-182: 1.2(W) x 2.6(H) mm M-183: 1.1(W) x 2.6(H) mm M-185: 1.7(W) x 2.6(H) mm M-186: 1.7(W) mm
Line spacing	M-180/M-181/M-182/M-183/M-185: 3.7mm (in case of 5 x 7 font and 3 dots / line paper feed) M-186: -
Column spacing	M-180: 2.0mm M-181: 1.6mm M-182: 1.3mm M-183: 1.2mm M-185/M-186: 2.0mm
Number of total dots	M-180: 144 dots / line M-181: 180 dots / line M-182: 216 dots / line M-183: 252 dots / line M-185: 108 dots / line M-186: 120 dots / line
Printing Speed	M-180: 1.7 lines / sec M-181: 1.3 lines / sec M-182: 1.1 lines / sec M-183: 1.0 lines / sec M-185: 1.7 lines / sec M-186: Typ 83ms/dotline
Printhead
Terminal Voltage	M-180/M-181/M-182/M-183/M-185: 3.3 to 5.5 VDC (3.3 to 5.5 VDC by Ni-Cd battery) M-186: 5.0 to 6.0 VDC
Peak current	M-180/M-181/M-182/M-183/M-185: Approx. 3 A / solenoid M-186: 3.5 A/ solenoid
Motor
Terminal Voltage	3.8 to 5.5 VDC
Mean current	Approx. 0.2 A
Paper
Dimensions	M-180/M-181/M-182/M-183: 57.5± 0.5 mm (W) x dia. 83mm maximum M-185: 44.4±0.5mm(W) M-186: Card Type (maximum width: 54mm)
Total Thickness	M-180/M-181/M-182/M-183/M-185: 0.06 to 0.085 mm M-186: 0.21 to 0.25mm
Copy Capability	Original + one copy
Ribbon Cassette	ERC-09/22
Ambient Temperature	0° to 50°C
Reliability
MCBF	M-180/M-181: 1.0 x 10⁶ lines M-182/M-183: 0.7 x 10⁶lines M-185/M-186: 1.0 x 10⁶lines
Printer	M-180/M-181: 1.0 x 10⁶ lines M-182/M-183: 0.7 x 10⁶lines M-185/M-186: 1.0 x 10⁶lines
Overall Dimensions	M-180/M-181/M-182/M-183/M-185: 91.0 (W) x 46.9 (D) x 15.8 (H)mm M-186: 93.9 (W) x 59.3 (D) x 21.1 (H)mm
Weight	M-180/M-181/M-182/M-183/M-185: Approx. 95 g M-186: Approx. 140 g

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
