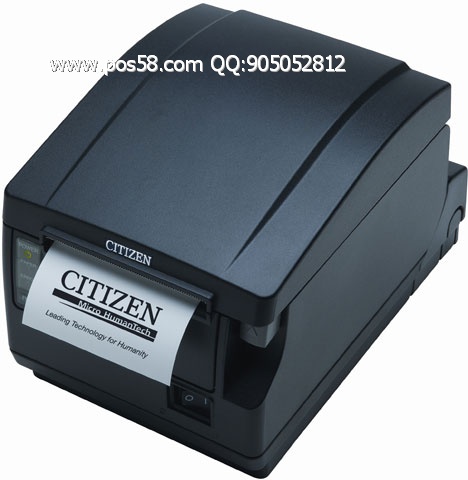

Citizen CT-S651 Receipt Printer Specifications
Printing Method
Line thermal dot print method
Printing Width (*1)
80 mm / 640 dots, 72 mm / 576 dots, 64 mm / 512 dots, 54.5 mm / 436 dots, 54 mm / 432 dots, 52.5 mm / 420 dots, 48 mm / 384 dots, 45 mm / 360 dots, 48.75 mm / 390 dots, 68.25 mm / 546 dots
Dot density
8 8 dots / mm (203 dpi)
Print Speed
Max. 300 mm/sec, 2400 dots lines / sec. (fastest, print density 100%)
Number of Print Columns (*2)
| Font |
Maximum # of Char. (Cols) |
Dot Config (dots) |
| |
83mm |
80mm |
60mm |
58mm |
|
| Font A |
53 |
48 |
36 |
35 |
12 x 24 |
| Font B |
71 |
64 |
48 |
46 |
9 x 17 |
| Font C |
80 |
72 |
54 |
52 |
8 x 16 |
Character Size (WxH) (*3)
Font A: 1.50 3.00 mm
Font B: 1.13 2.13 mm
Font C: 1.00 2.00 mm
Character Type
Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/865/866/
WPC1252/Katakana/Thai code 18
Operation Panel
3 LEDs, Feed button
User Memory
384 Kb (capable of storing user-defined characters and logos)
Barcode Type
UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR (NW-7), CODE 93, PDF417, QR Code
Line Spacing
4.23mm (1/6 inch) (changeable using commands)
Paper Roll
Paper roll: 83+0/-1 mm, 80+0/-1 mm, 60+0/-1 mm, 58 mm+0/-1 F 80 mm
Paper thickness: 0.065 - 0.075mm (core tube diameter: inner 12 mm/outer 18mm)
0.075 - 0.150mm (core tube diameter: inner 25.4 mm/outer 32 mm)
Interface
Serial (RS-232C compliant), Parallel (IEEE1284 compliant), USB,
USB with hub, Ethernet, powered USB
External Device Port
Cash drawer kick-out
Buffer Size
4K bytes / 45 bytes
Supply Voltage
DC 24V 5%
Power Consumption
Approx. 45 W (normal printing), 3W (standby)
AC Adapter
(36AD2, 36AD3)
Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC24 V, 2.1 A
Weight
CT-S651S (Built-in power supply type): 1.9kg
CT-S651A (AC adaptor type): 1.5kg
Outer Dimensions
(W D H)
CT-S651S (Built-in power supply type): 145 192 142 mm
CT-S651A (AC adaptor type): 145 192 114 mm
Operating Temperature and Humidity
5 to 45 C, 10 to 90 % RH (no condensation)
Storage Temperature and Humidity
-20 to 60 C, 10 to 90 % RH (no condensation)
Reliability (*4)
Print head life: 150 km, 200 million pulses
Auto cutter life: 2 million cuts (full cut), 1.6 million cuts (partial cut)
Safety Standards (*5)
UL, C-UL, FCC class A, TUV-Bauart, CE marking
(*1) When paper width is 83, 80, 60 or 58 mm.
(*2) The number of printable column is selected using a memory switch. The number of columns noted in this able refer to typical models. The number of columns varies depending on specifications.
(*3) Characters appear small because the dimensions include a blank area surrounding each character.
(*4) At normal temperature and humidity using recommended paper.
(*5) Compliant if the Citizen Systems AC adapter (36AD2/36AD3) is used.
|
