产品展示

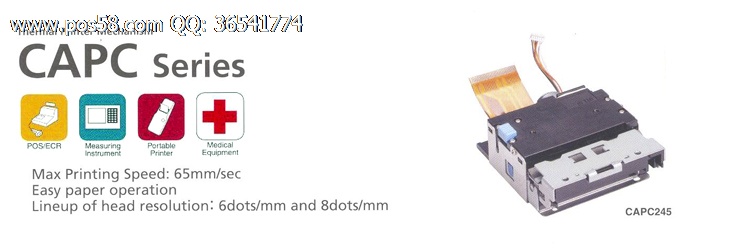

CAPC245F-E

CAPC245F-E CAPC245F-E
产品名称:CAPC245F-E
产品编号:CAPC245F-E
详细说明:
CAPC245F-E


Model
CAPC235
CAPC245
Printing Method
Thermal line dot printing
Number of dots/line
288
384
Resolution(dots/mm)
6
8
Paper width(mm)
58
Printing width(mm)
48
Speed(mm/sec) max
60
65
Paper path
Curved
Detection Head temperature
By thermistor
Platen position detection
By mechanical switch
Out of Paper detection
By photo interrupter
Cutter home position
By mechanical switch
Power supply(V) Operation Voltage(Vdd)
4.75 to 5.25
Operation Voltage(Vp)
5.0 to 8.0
Peak current(A) Head
4.6 (8V/144dot on)
4.3 (8V/96dot on)
Motor
0.82 (8V on)
Cutter
2.2
Cutting Method
Slide type
Cutting type
Partial (Right side single edge point remained)
Paper thickness (µm)
54 to 80 *1
Cutting pitch (mm)min
10
Operating time (sec/cycle) max
1
Cut frequency (cut/min) max
30
Service life Pulse activation(pulse)
50 million
100 million
Abrasion resistance(km)
50
Life (cut)
500,000
Operating temperature(°C)
0 to 50
Dimensions(WxHxD mm)
71.1 x 88.6 x 29.0 *2
Mass(g)
Approx.220
*1 Use recommended thermal papers
*2 Excluding protrusion



CPU
Model
PT800P01
Thermal printer
CAPC235 CAPC245
Package form
80pin QFP
Operating Voltage(V)
Vp:5.0 to 8.0, Vcc:4.5 to 5.5
Operating frequency(MHz)
5+0.5%
Configuration
C-MOS LSI
Communication interface
Parallel, Serial
Character type Extended graphics character set
Other characters are available with CGs*1 or external ROM
Character matrix(HxW dots)
16 dots characters: 16*8, 16*16
24 dots characters: 24*12, 24*24
Dimensions(WxHxD mm)
17.2 x 17.2 x 1.7
*1 CG ROM: Japanese, Korean
