cap9247A/B/E/F and borad IF9000 |
|
|
| 产品名称：cap9247A/B/E/F and borad IF9000 |
| 产品编号：cap9247A/B/E/F and borad IF9000 |
| 详细说明： |
|
|

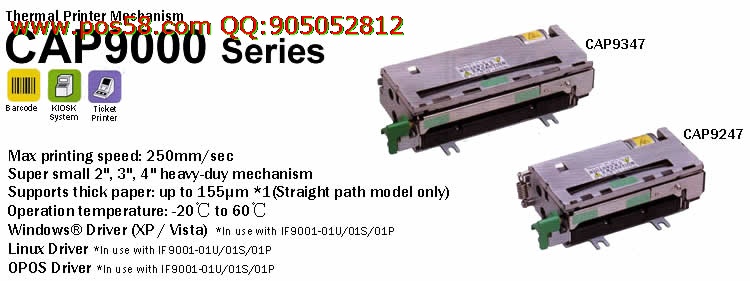

CAP9247
|
|
CAP9447
|
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
448
|
640
|
832
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
58  /60 |
80 /82.55 |
112 |
| Printing width(mm) |
54/56
|
76/80
|
104
|
| Speed(mm/sec) max |
250
|
| Paper path |
Curved/Straight
|
| Detection |
Head temperature |
By thermistor
|
| Out of Paper detection |
By photo interrupter
|
| Mark position detection |
By photo interrupter
|
| Platen position detection |
By mechanical switch
|
| Cutter position detection |
By mechanical switch
|
| Power supply(V) |
Operation Voltage(Vdd) |
4.75 to 5.25
|
| Operation Voltage(Vp) |
21.6 to 26.4
|
| Peak current(A) |
Head |
5.9 (26.4V/128 dots)
|
| Motor |
1.0
|
| Cutting |
Method |
Slide type
|
| Paper thickness (µm) |
57 to 155 *1
|
| Cutting type |
Full cut / Partial cut(Leave center point)
|
| Operating time (sec/cycle) max |
2
|
| Cutting pitch (mm)min |
10
|
| Cut frequency (cut/min) max |
30
|
| Service life |
Pulse activation |
150 million
|
| Abrasion resistance(km) |
150 *1
|
| Autocutter (cut) |
1 million
|
| Operating temperature(°C) |
-20 to 60
|
| Dimensions(WxHxD mm) |
89.5 x 50.0 x 30.0 *2
|
112.0 x 50.0 x 30.0*2
|
140.75 x 59.3 x 32.0*2
|
| Mass(g) |
Approx.240
|
Approx.290
|
Approx.390
|
|
*1 Use recommended thermal papers *2 Excluding protrusion
Windows ® is the registered trademark of Microsoft Corporation (USA).
|
|
Interface
|
|
Model
|
IF9001-01U
|
IF9001-01S |
IF9001-01P |
| CPU |
IF9001 only
|
| Thermal printer |
CAP9247, CAP9347 , CAP9447
|
| Operating Voltage(V) |
Vp: 21.6 to 26.4
|
| Character matrix(HxW dots) |
16 dots characters : 16 x 8, 16 x 16
|
|
24 dots characters : 24 x 12, 24 x 24
|
| Character type |
Optional font |
Yes
|
Yes
|
Yes
|
| Downloaded character |
Yes
|
Yes
|
Yes
|
| User-defined character |
Yes
|
Yes
|
Yes
|
| Extend graphics character set |
Yes
|
Yes
|
Yes
|
| Katakana character set |
|
|
Yes
|
| JIS 1&2 level kanji |
|
|
Yes
|
| Communication interface |
USB
|
Serial(RS-232C)
|
Parallel
|
| Dimensions(WxHxD mm) |
108.0 x 90.0 x 28.0
|
|
 |
