ACU04-37

ACU04-37
产品名称:ACU04-37
产品编号:ACU04-37
详细说明:

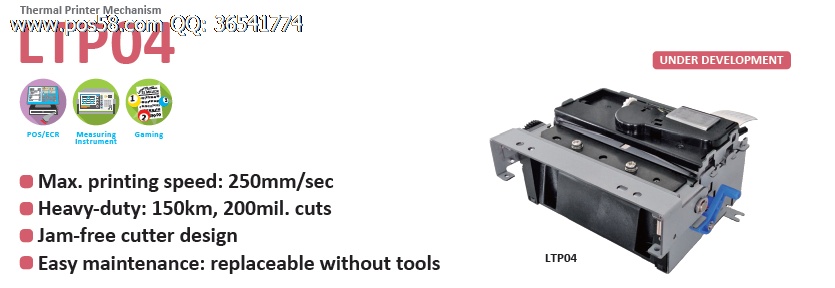

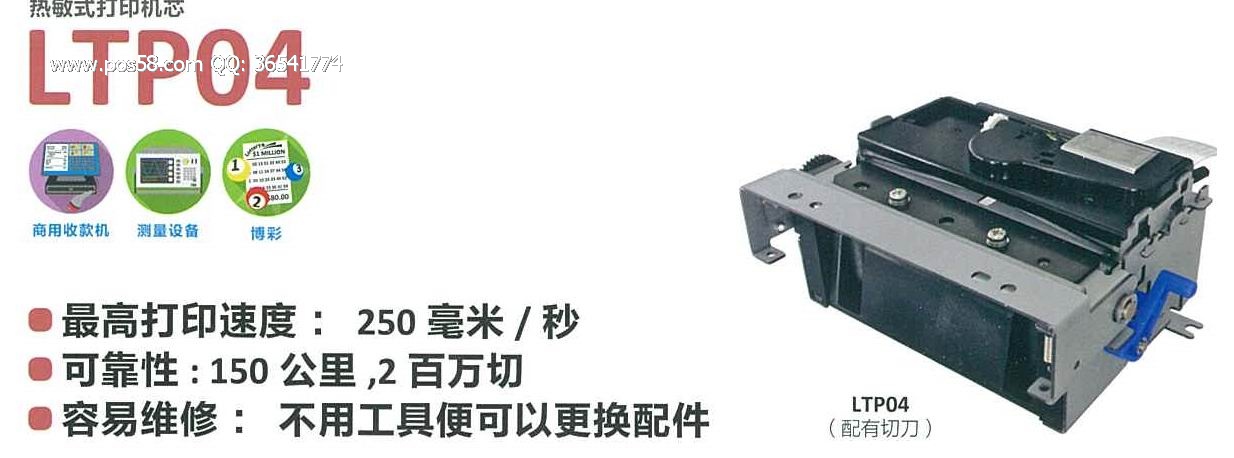

Model
LTP04-347
Printing Method
Thermal line dot printing

Number of dots/line
576

Resolution (dots/mm)
8

Paper width (mm)
80

Printing width (mm)
72

Speed (mm/sec) max
250

Detection Head temperature
By thermistor

Platen position
By mechanical switch
Out of paper
By photo interrupter

Power supply (v) Operation voltage (Vdd)
3.0 to 3.6

Operation voltage(Vp)
21.6 to 26.4

Peak current(A) Head
8.0 (26.4 / 192 dots)

Motor
1.2

Service Life Pulse activation (pulse)
200 million*1
Abrasion resistance (km)
150*1

Operating temperature (oC)
0 to 50

Dimension (W*D*H mm)
121.0 x 72.0 x 56.0*2
Mass (g)
Approx. 500

*1 Use recommended thermal papaers. *2 Excluding protrusion.



Auto Cutter
Model
ACU04-37
Thermal printer
LTP04-347
Cutting
Method
Slide type
Paper width (mm)
80
Paper thickness (µm)
60 to 80*3
Cutting type
Partial cut (Leave center point)
Operating time (sec/cycle) max
0.3 (24V)
Cutting pitch (mm) min
10
Cut frequency (cum/min) max
30
Operating voltage (v)
Motor
21.6 to 26.4
Detector (control switch)
4.5 to 5.5
Starting current (A)
1.2
Life (cut)
2,000,000*4
Dimension (W x D x H mm)
95.6 x 39.0 x 16.2
Mass (g)
Approx. 100
*3 Use recommended thermal papers *4 Depending upon specified condition.
